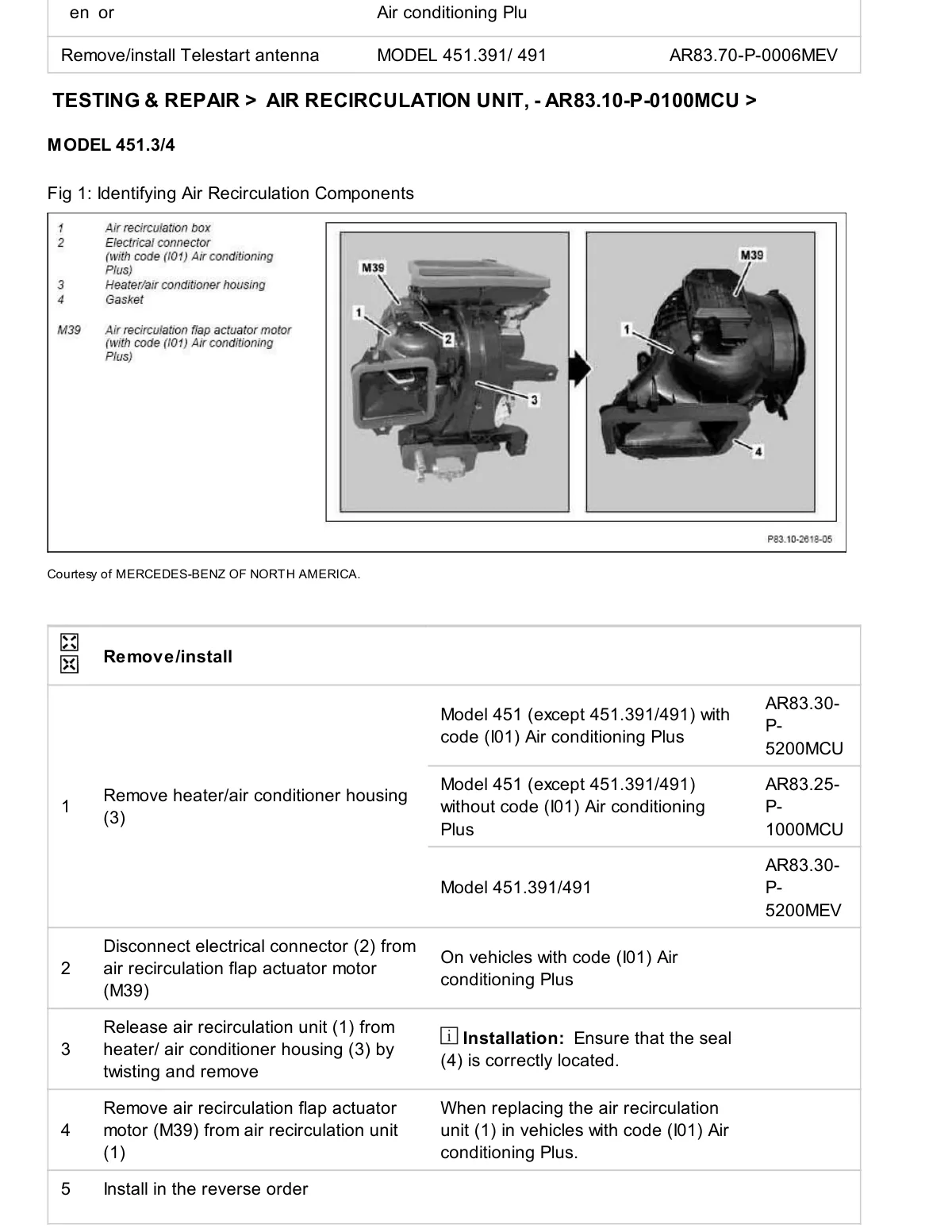

Air recirculation unit components and removal/installation procedure for smart 451 with air conditioning plus.

Exploded view of air recirculation box, flap actuator motor, and heater/air conditioner housing with numbered callouts.

View full-size image ↗
