Mirror mounting cover water sealing inspection for model 452, showing butyl seal replacement and proper screw sealing procedure.

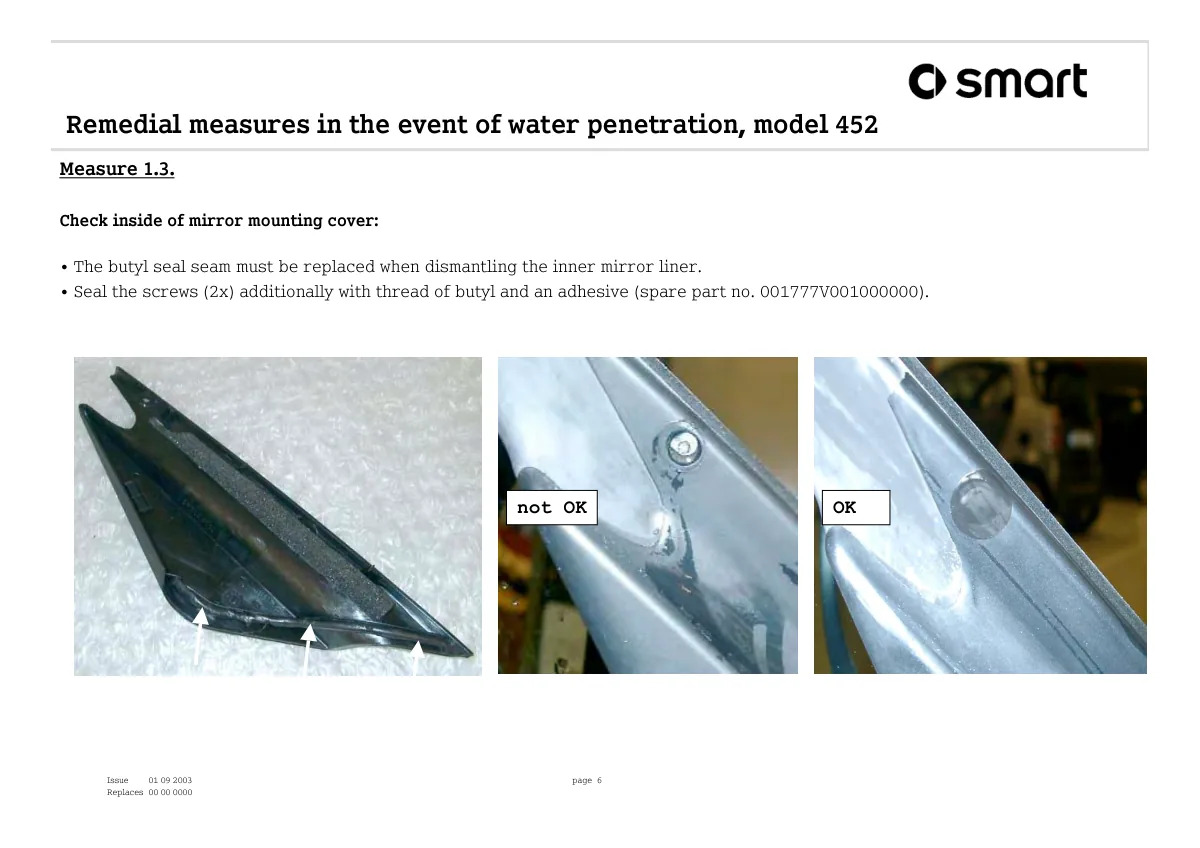

Three photos comparing mirror cover seal conditions: left shows inner liner component, center labeled 'not OK' shows improper seal, right labeled 'OK' shows correct seal application.
