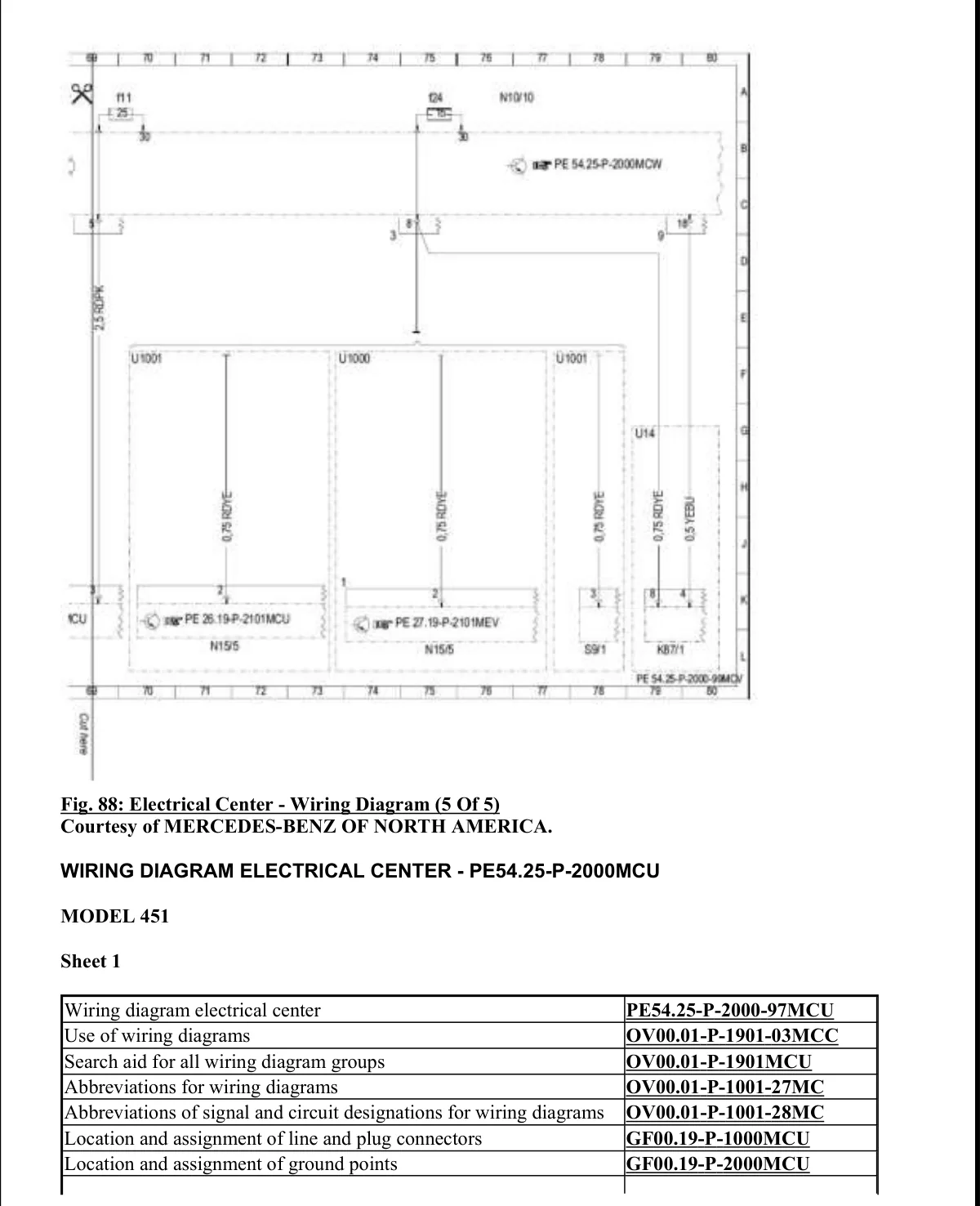

Electrical center wiring diagram for 451 chassis, page 5 of 5, showing control modules and signal routing.

Wiring schematic with three control modules U1001, U1000, U14 connected by signal lines labeled 0/5 02DE.
