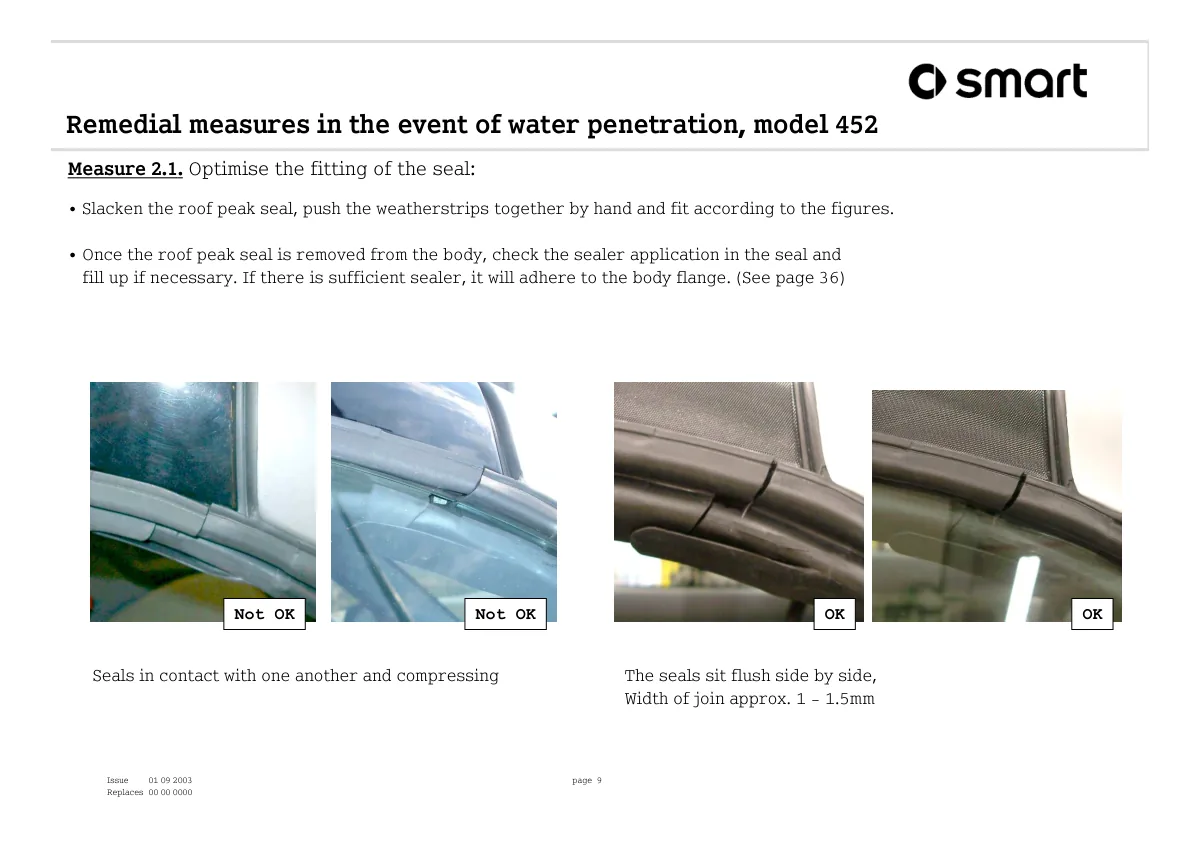

Model 452 roof peak seal fitting inspection showing correct and incorrect seal contact alignment for water penetration prevention.

See all Body & Interior figures for the Roadster (452), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
