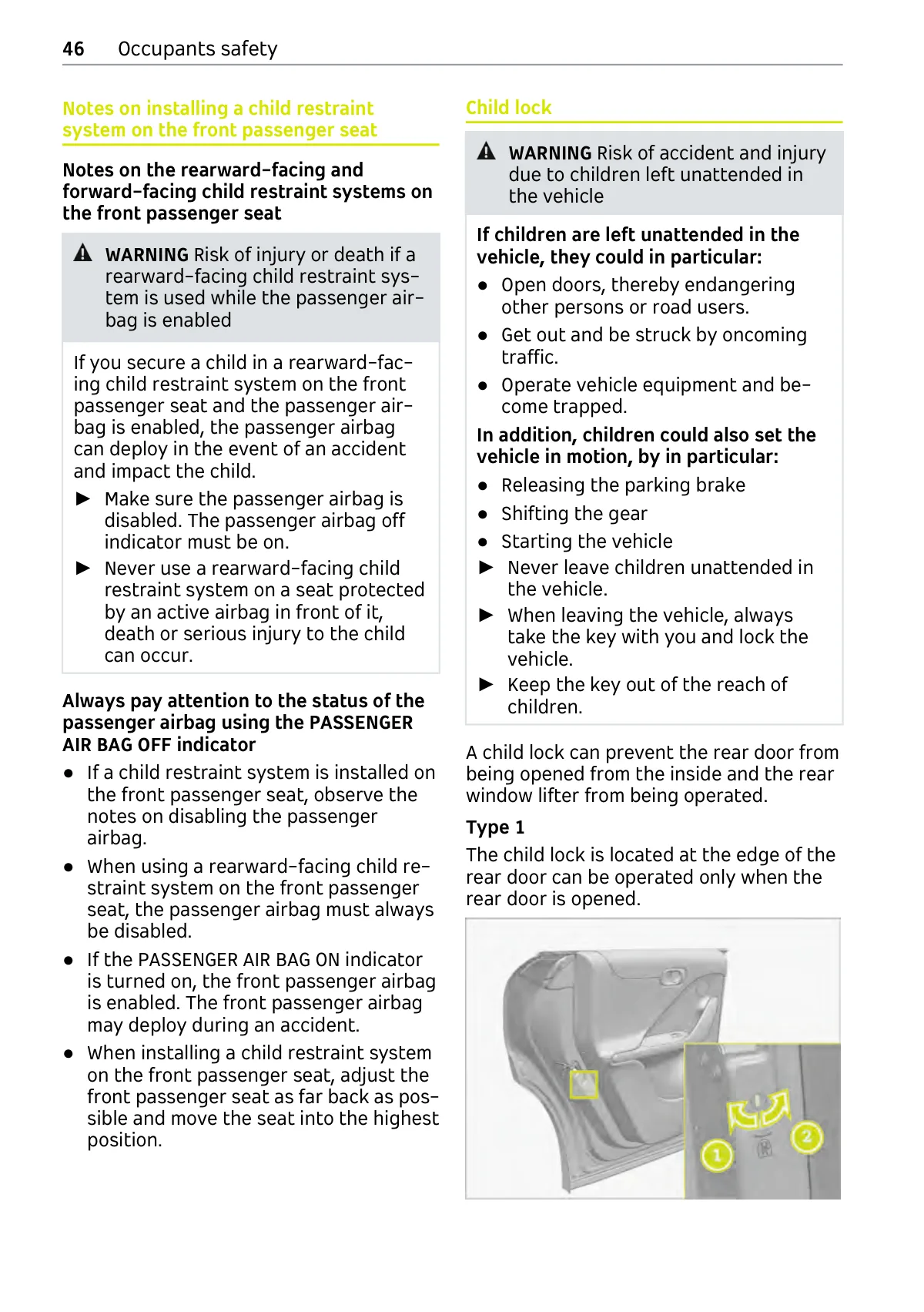

Child restraint system installation warnings and Type 1 child lock mechanism on rear door, Smart occupants safety page 46.

Safety warnings for child restraint systems and child lock operation diagram on rear door.
