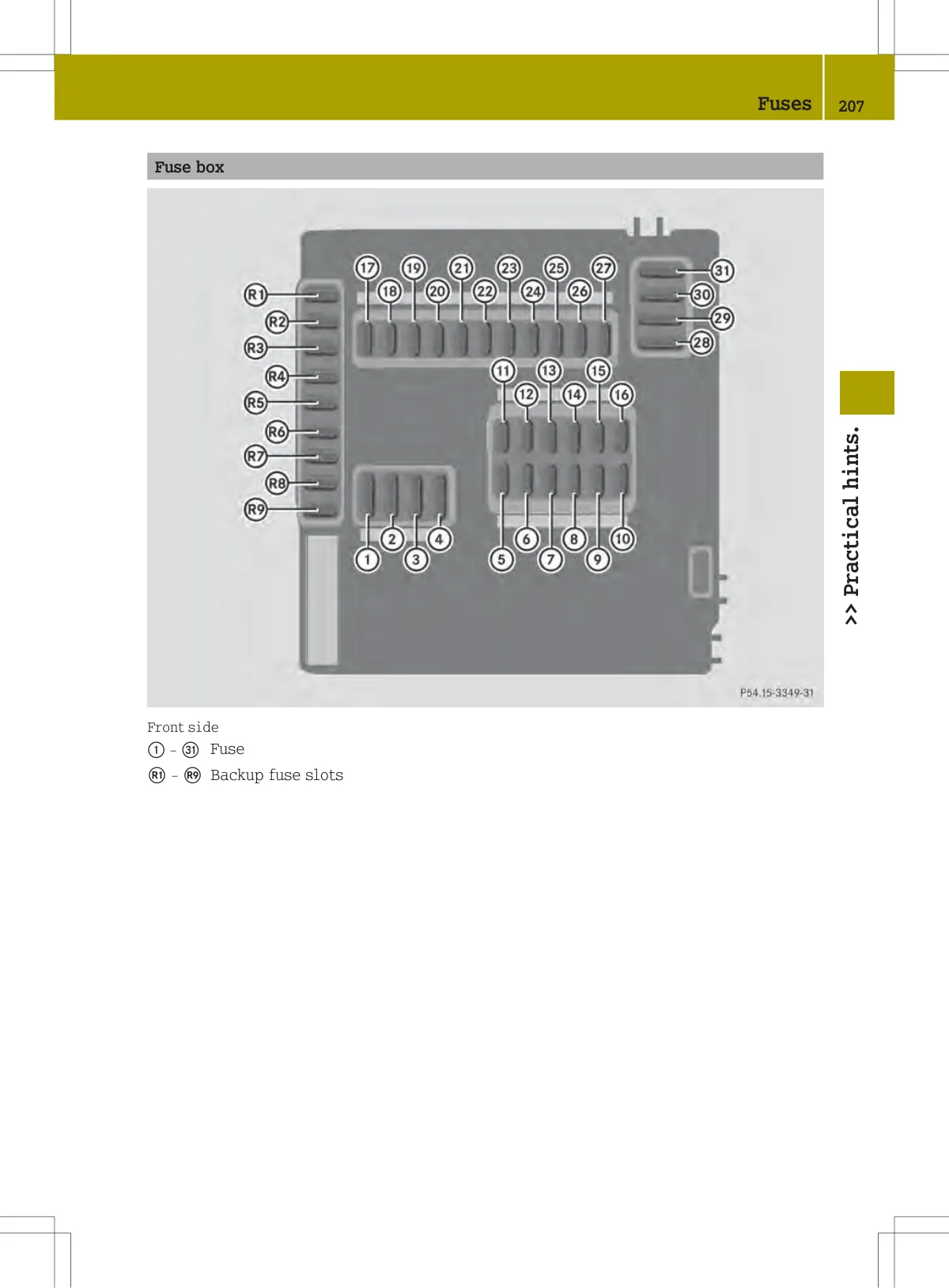

Front side fuse box layout with 31 numbered fuses and backup fuse slots R1–R9.

Fuse box diagram showing fuse positions 1-31 and backup slots R1-R9 labeled.
