Roof peak seal drainage hole enlargement procedure for model 452, before and after comparison with measurement tool.

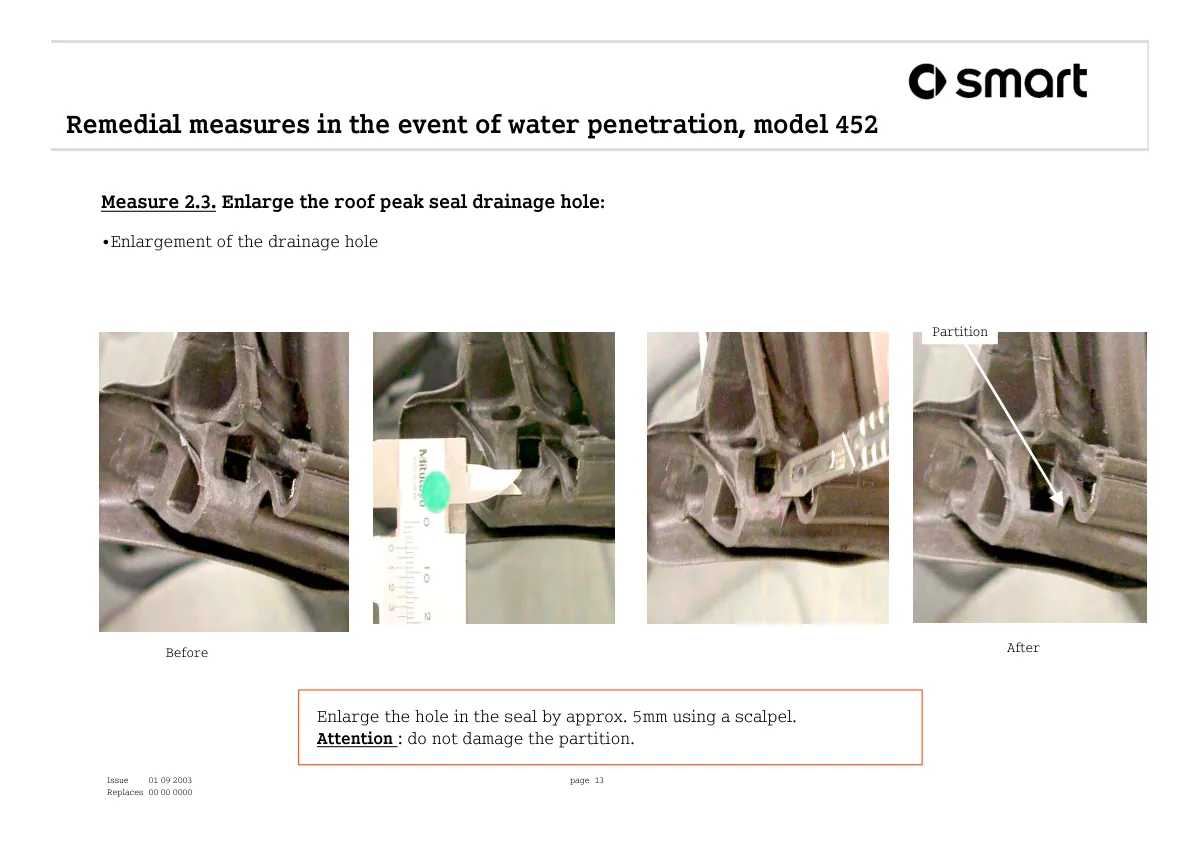

Four photos showing roof drainage hole enlargement process on smart 452, with measuring scale and partition label.
