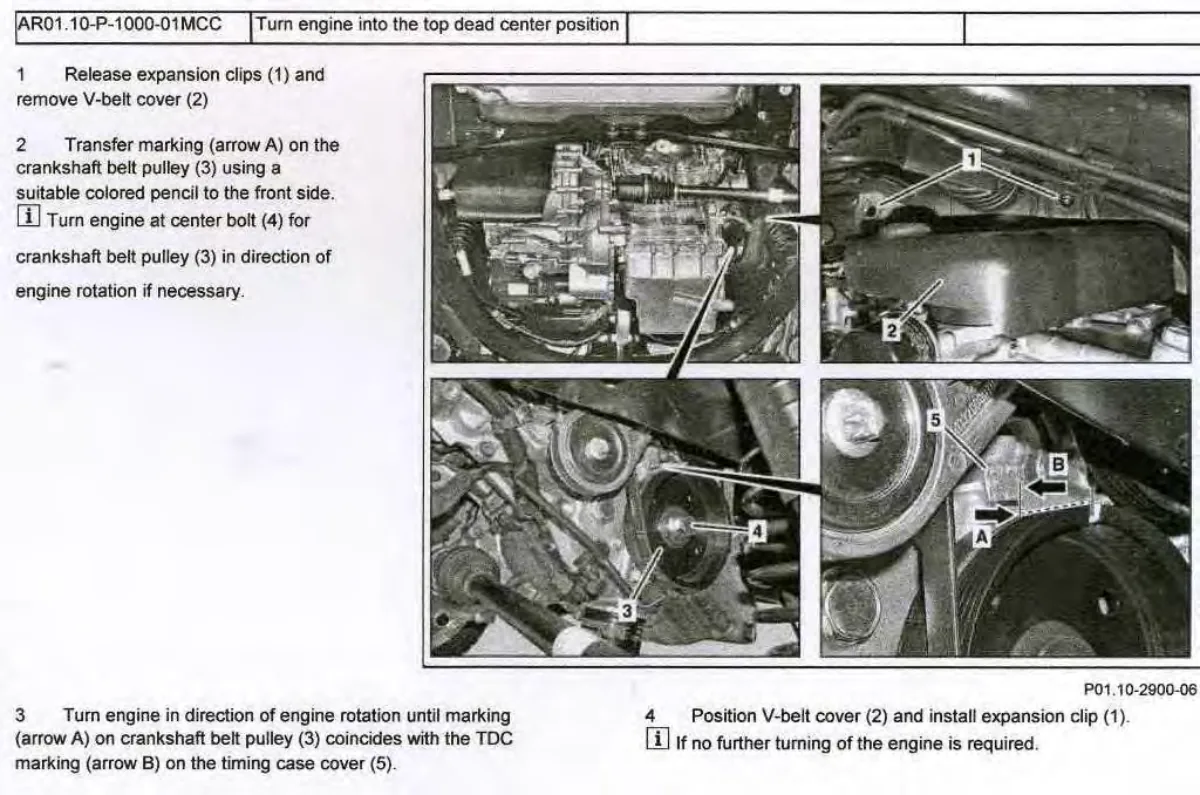

Engine timing procedure: release V-belt cover clips, transfer crankshaft pulley marking, align with TDC marking on timing case cover, reposition cover and expansion clip.

Four engine bay photos showing V-belt cover removal, crankshaft pulley marking transfer, and TDC alignment procedure for smart fortwo.
