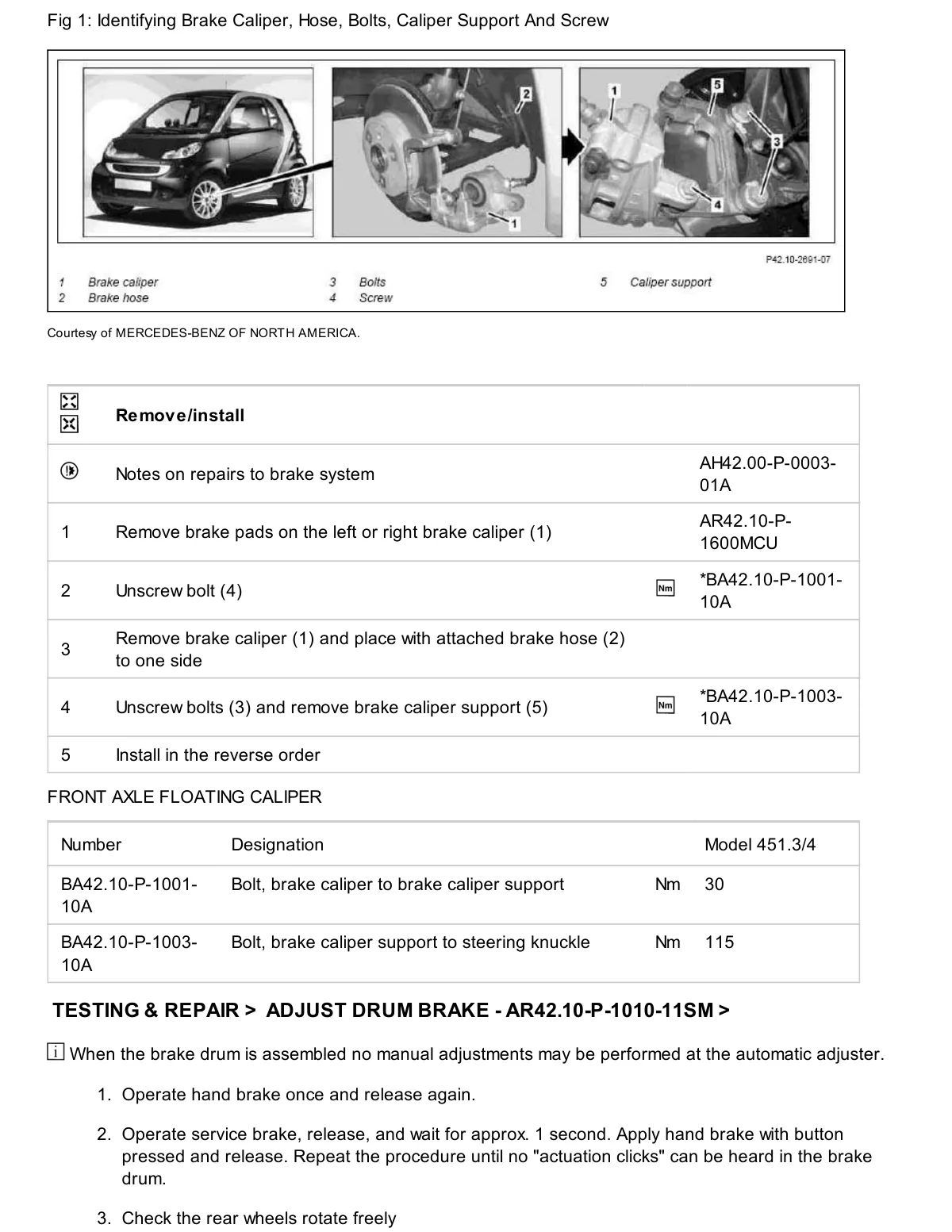

Front axle floating caliper assembly: brake caliper, hose, bolts, support and mounting screw locations on Smart 451/452 chassis.
