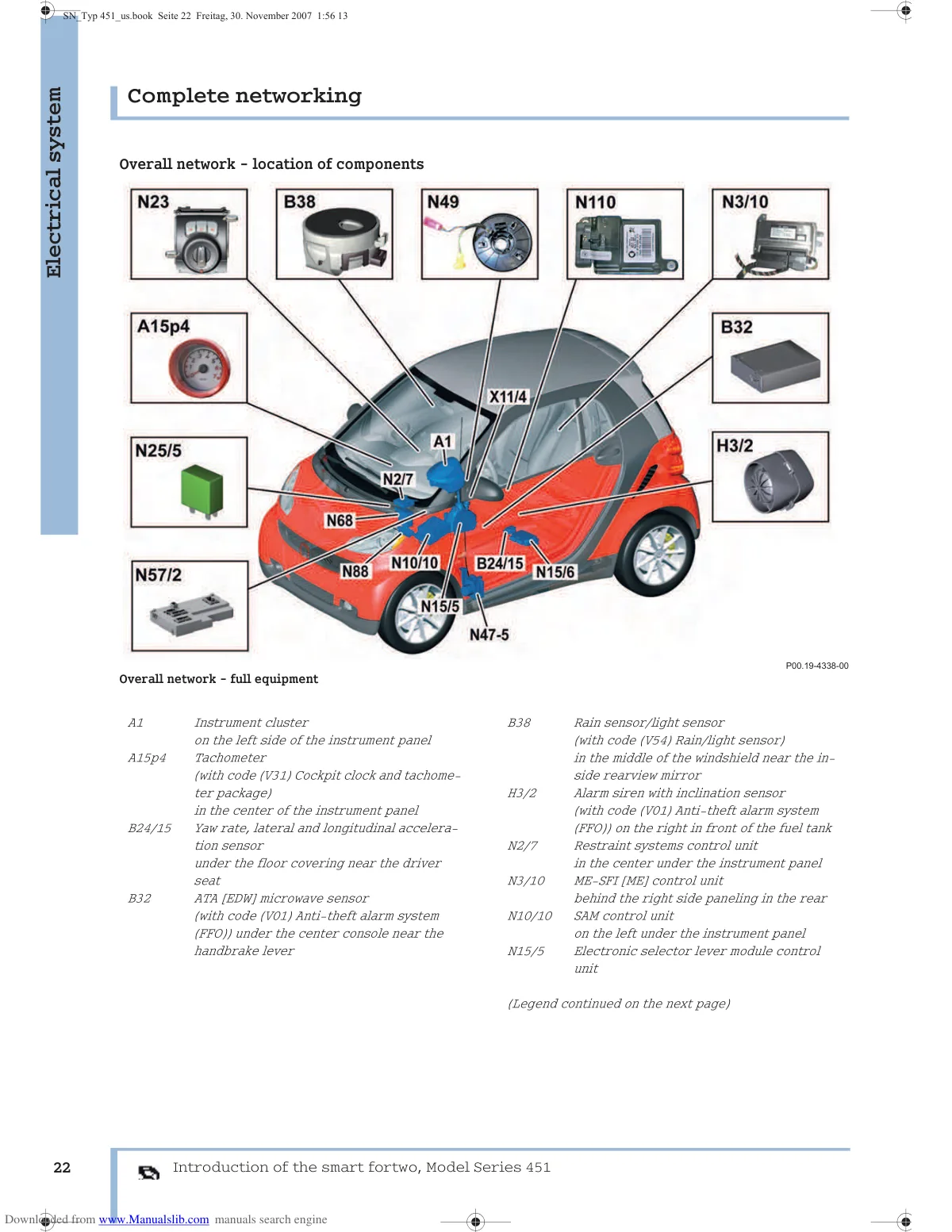

Smart Fortwo 451 complete electrical system component locations and network overview diagram.

Component location diagram showing electrical system parts on red and gray Smart Fortwo 451 vehicle with labeled callouts.
