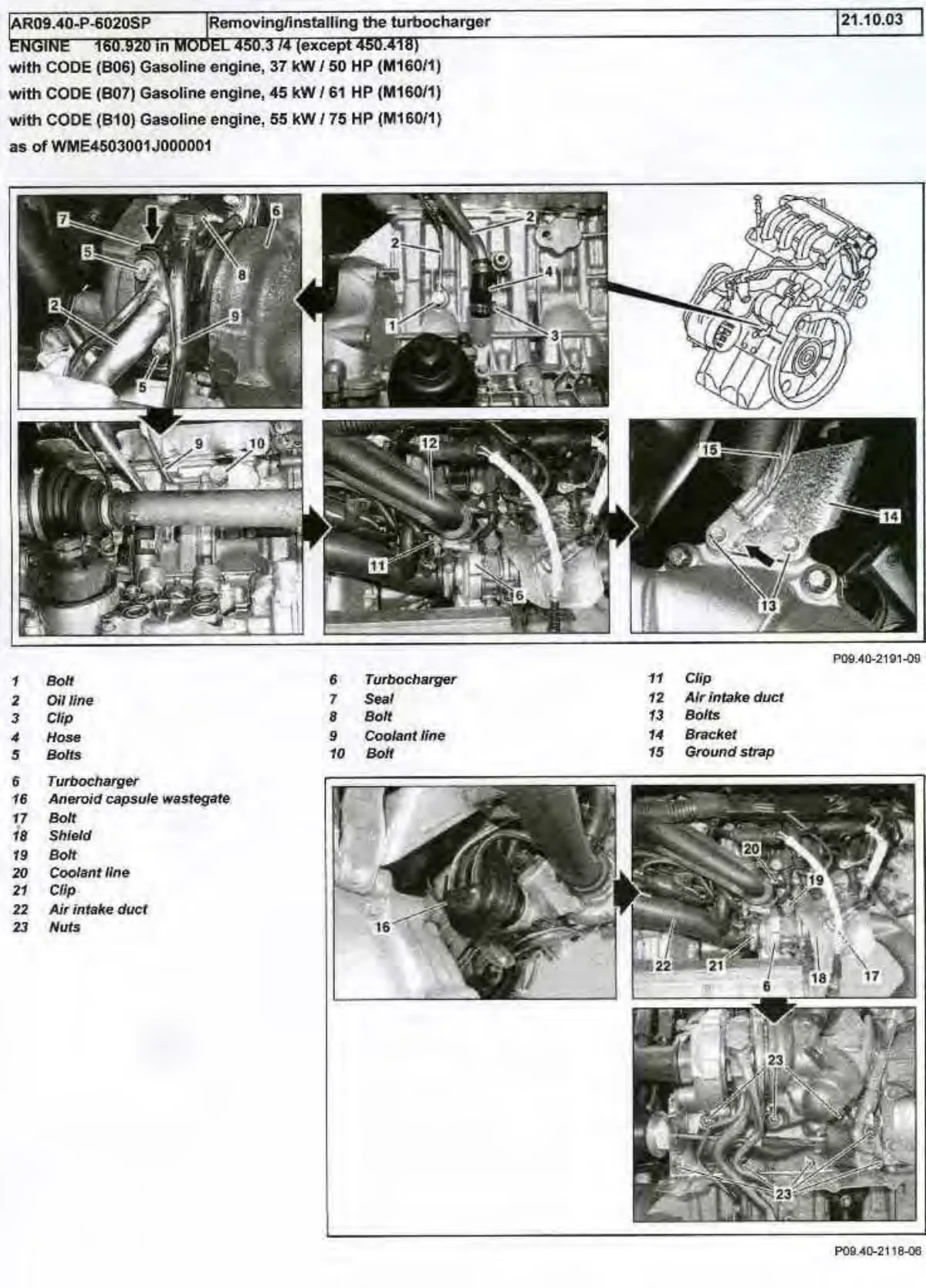

Turbocharger removal and installation procedure for smart fortwo 450 gasoline engines with detailed callout locations.

Multi-panel technical diagram showing turbocharger removal steps with numbered callouts on engine photos and schematic.

Chassis: Fortwo (450)
System: Powertrain · Engine
Figure type: Exploded view
Source: 1998-2015 smart fortwo (450 451) - Technical & Service Reference, page 143 Open manual →
Callouts: 23 numbered callouts visible on the figure

Parts referenced

Turbocharger
Oil line
Coolant line
Air intake duct
Bolts
Clips
Seals
Bracket
Ground strap
Aneroid capsule wastegate
Shield
Nuts

engineservice procedurecallout numberedexploded view
