Alternator regulation voltage test schematic and procedure for 454.0 model with engines 122.9, 134.9, 135.9, 639.9.

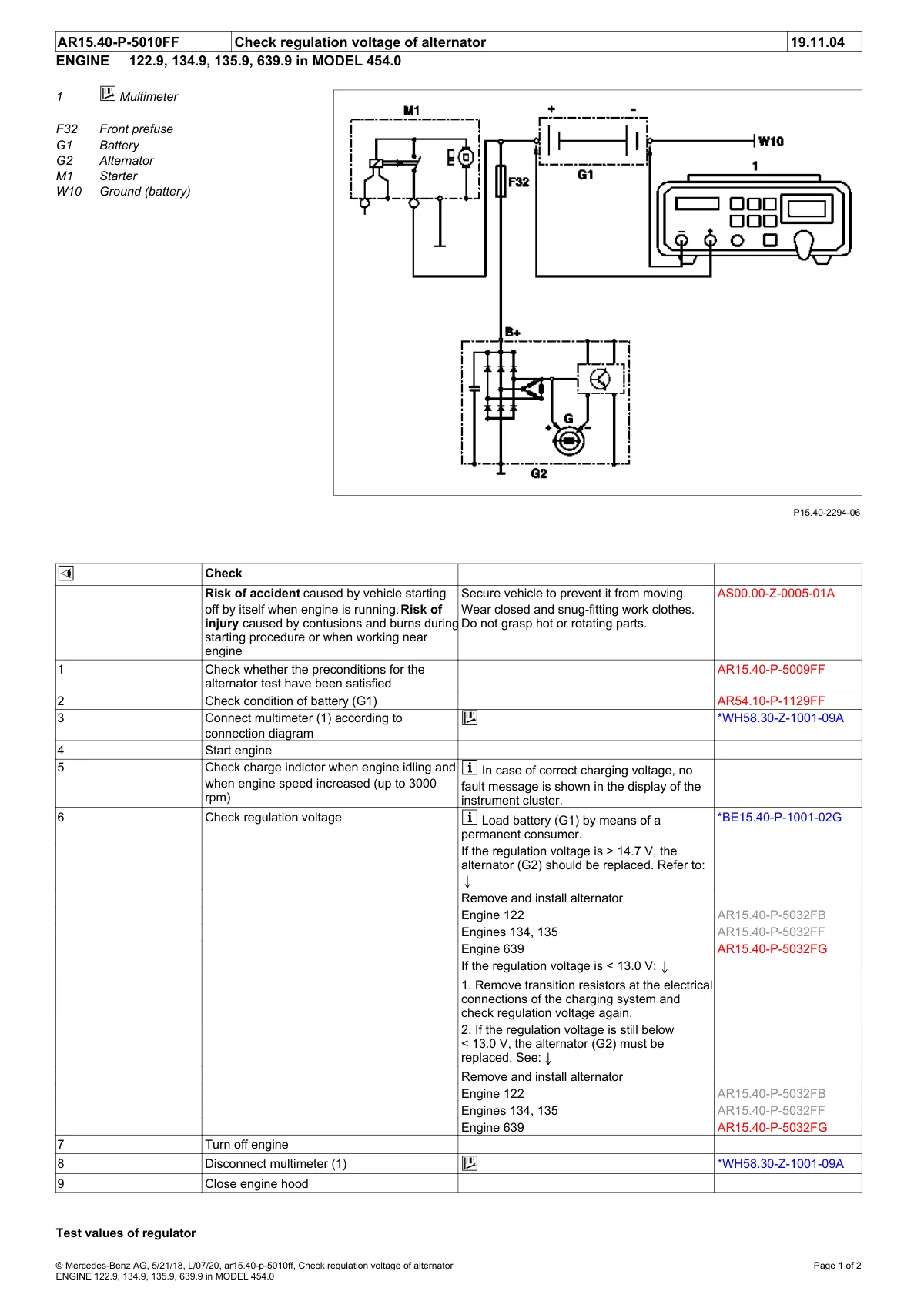

Wiring diagram showing multimeter, battery, alternator, starter connections and test procedure steps 1-9.
