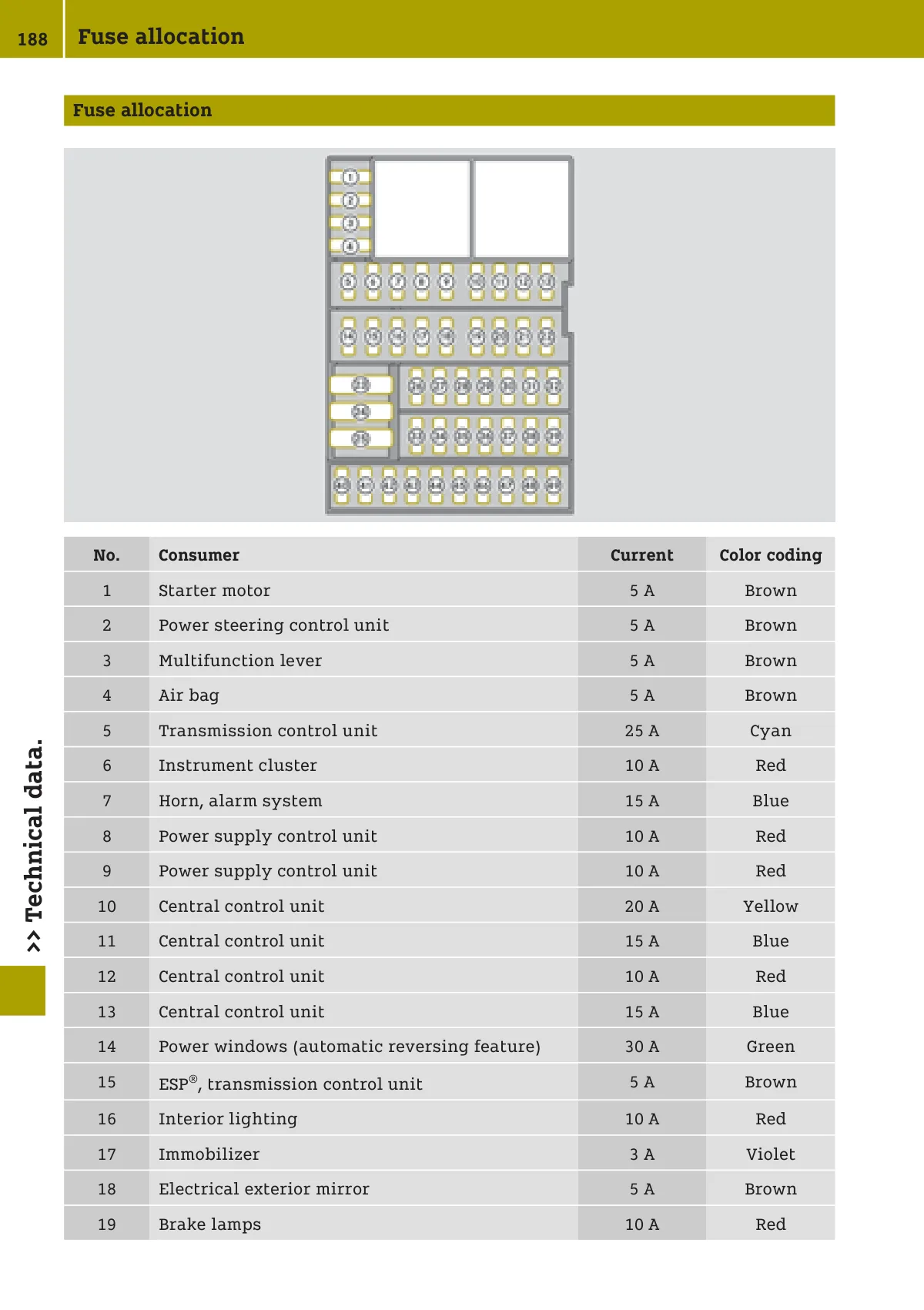

Fuse allocation chart listing numbered fuses, their circuits, amperage ratings, and color coding for Smart Fortwo 453.

Fuse box diagram and table showing 19 fuses with consumer devices, current ratings, and color codes.
