High-voltage and 12V electrical system topology for smart fortwo electric drive (451), showing battery, power electronics, motor, chargers, and PTC heater connections.

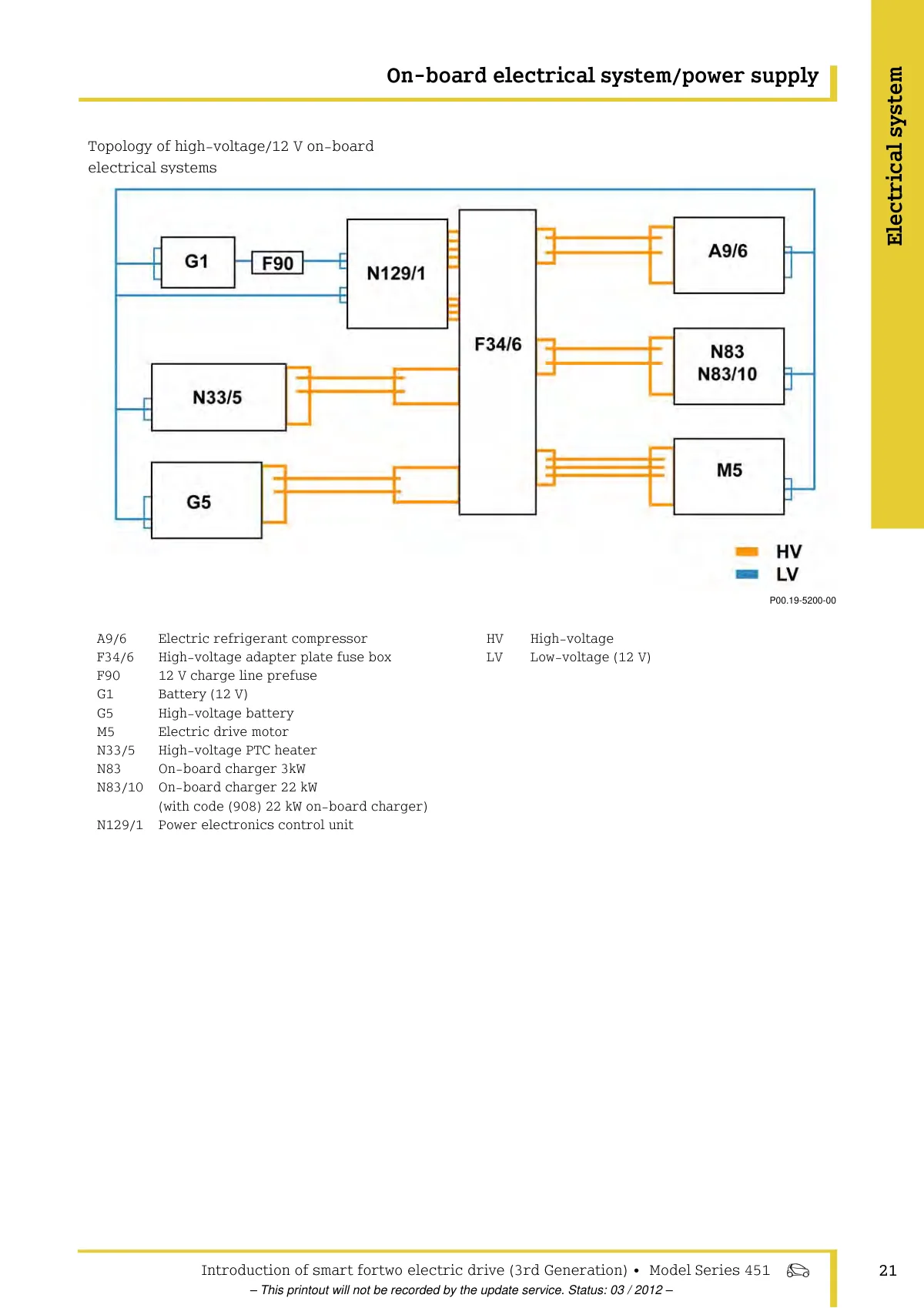

Electrical system schematic diagram with high-voltage (orange) and low-voltage (blue) circuit paths connecting battery, motor, chargers, and control units.
