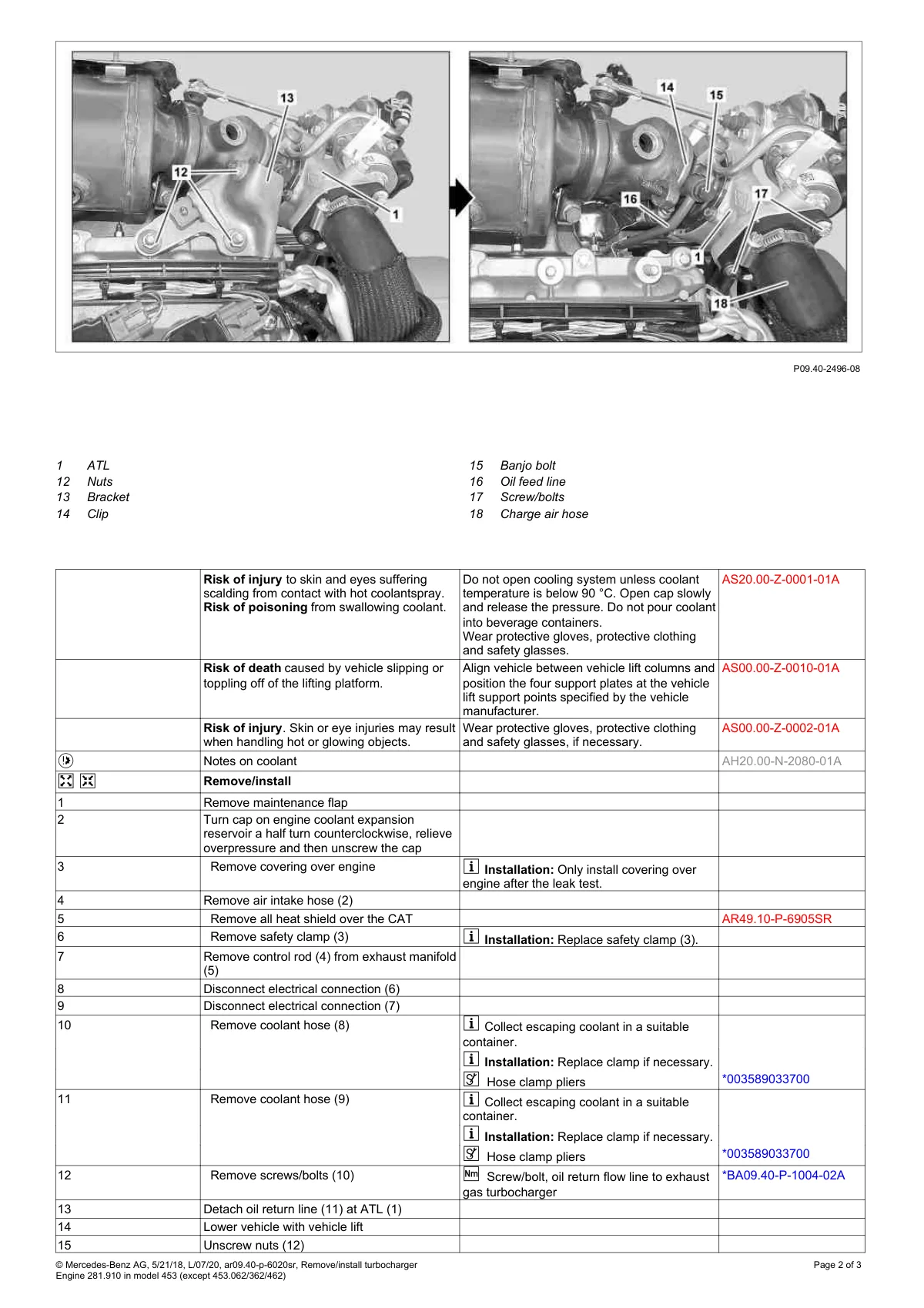

Engine turbocharger removal and installation procedure with numbered callouts showing bracket, nuts, clip, banjo bolt, oil feed line, screwbolts, and charge air hose locations.

Two side-by-side engine photos with numbered callouts 1-18 identifying turbocharger components and removal steps.
