High-voltage battery charging cable control element operation and indicator lamp status definitions for smart fortwo 451 EV.

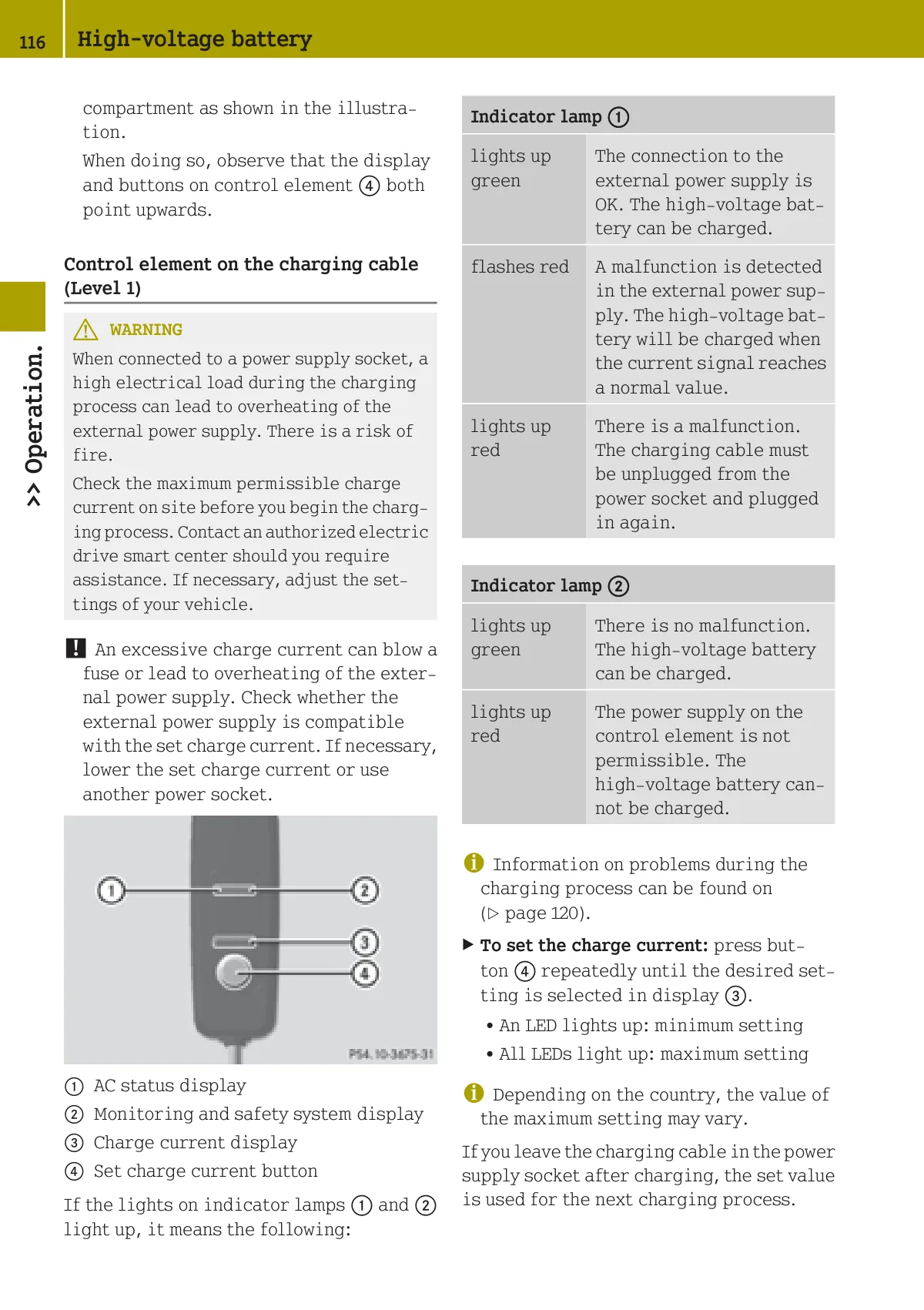

Charging cable control panel with numbered indicators and lamp status guide showing green and red light meanings.
