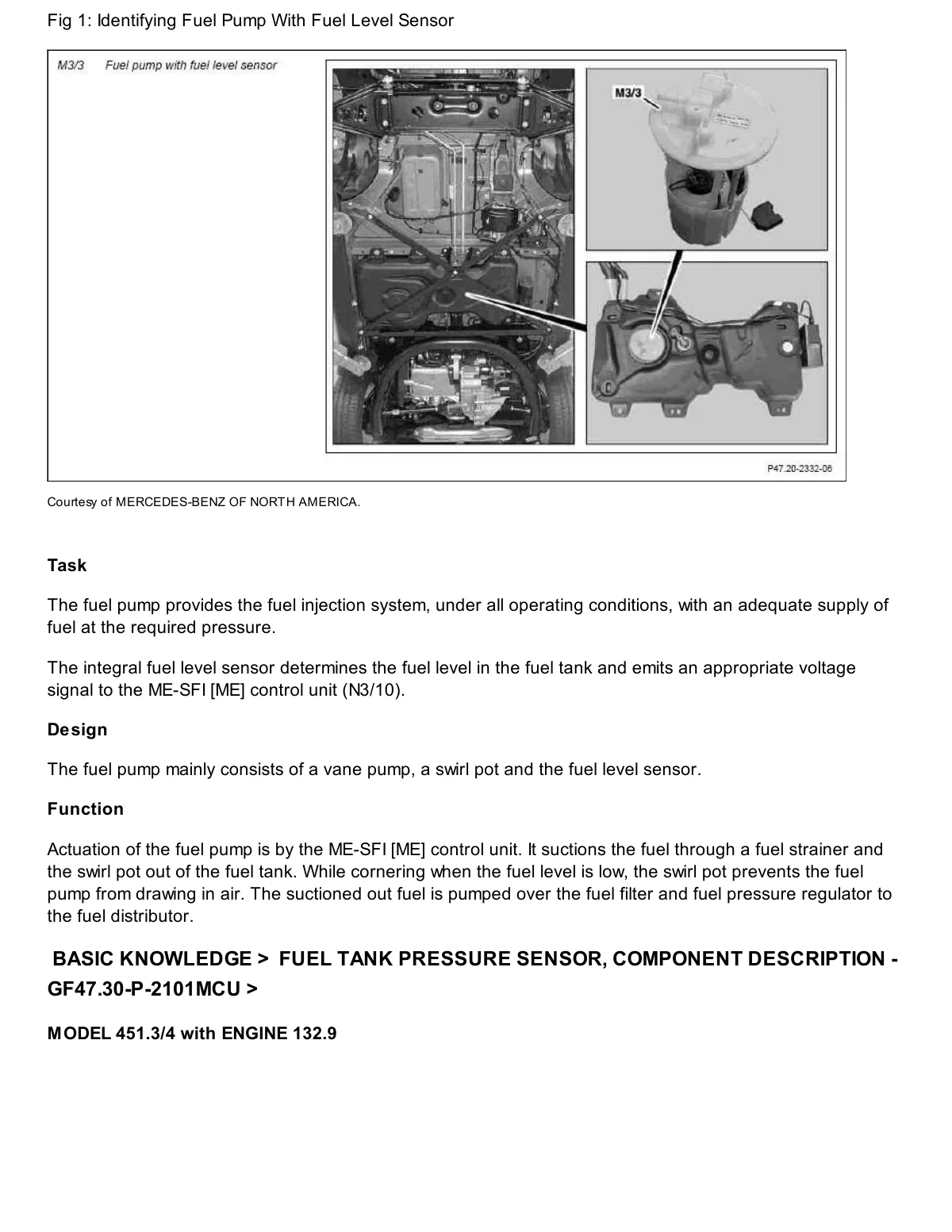

Fuel pump assembly with integrated fuel level sensor location in fuel tank, chassis 451 model.

Fuel pump with sensor shown in tank location and close-up detail views.
