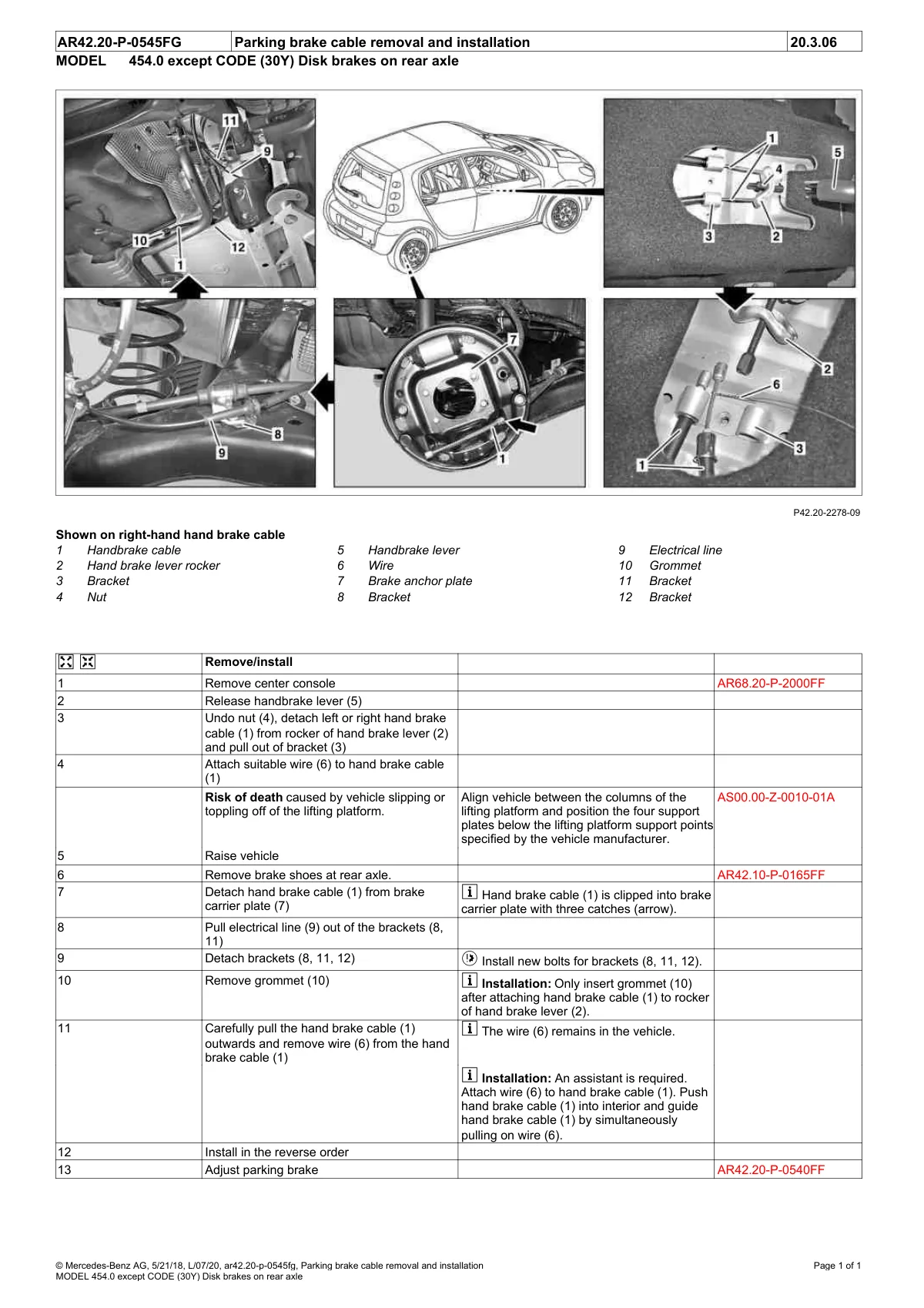

Parking brake cable removal and installation procedure for Smart Fortwo 454 with numbered components and step-by-step service instructions.

Service manual page showing parking brake cable assembly, disassembly steps, and component callouts for Smart Fortwo 454.

View full-size image ↗

See all Chassis figures for the Fortwo / Forfour (453), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
