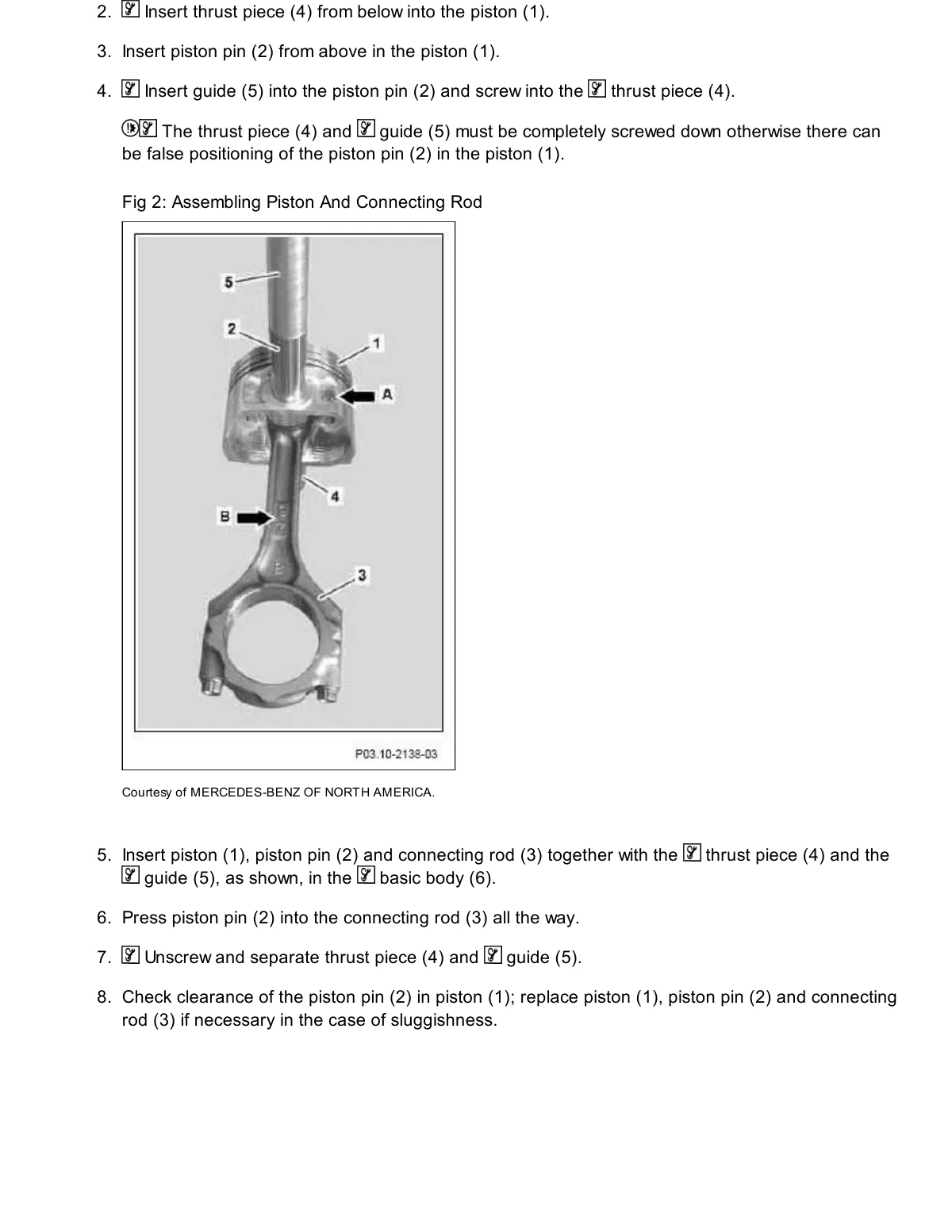

Piston and connecting rod assembly procedure showing numbered components piston pin thrust piece guide and connecting rod.

Exploded view diagram of piston connecting rod assembly with five numbered parts labeled A B.
