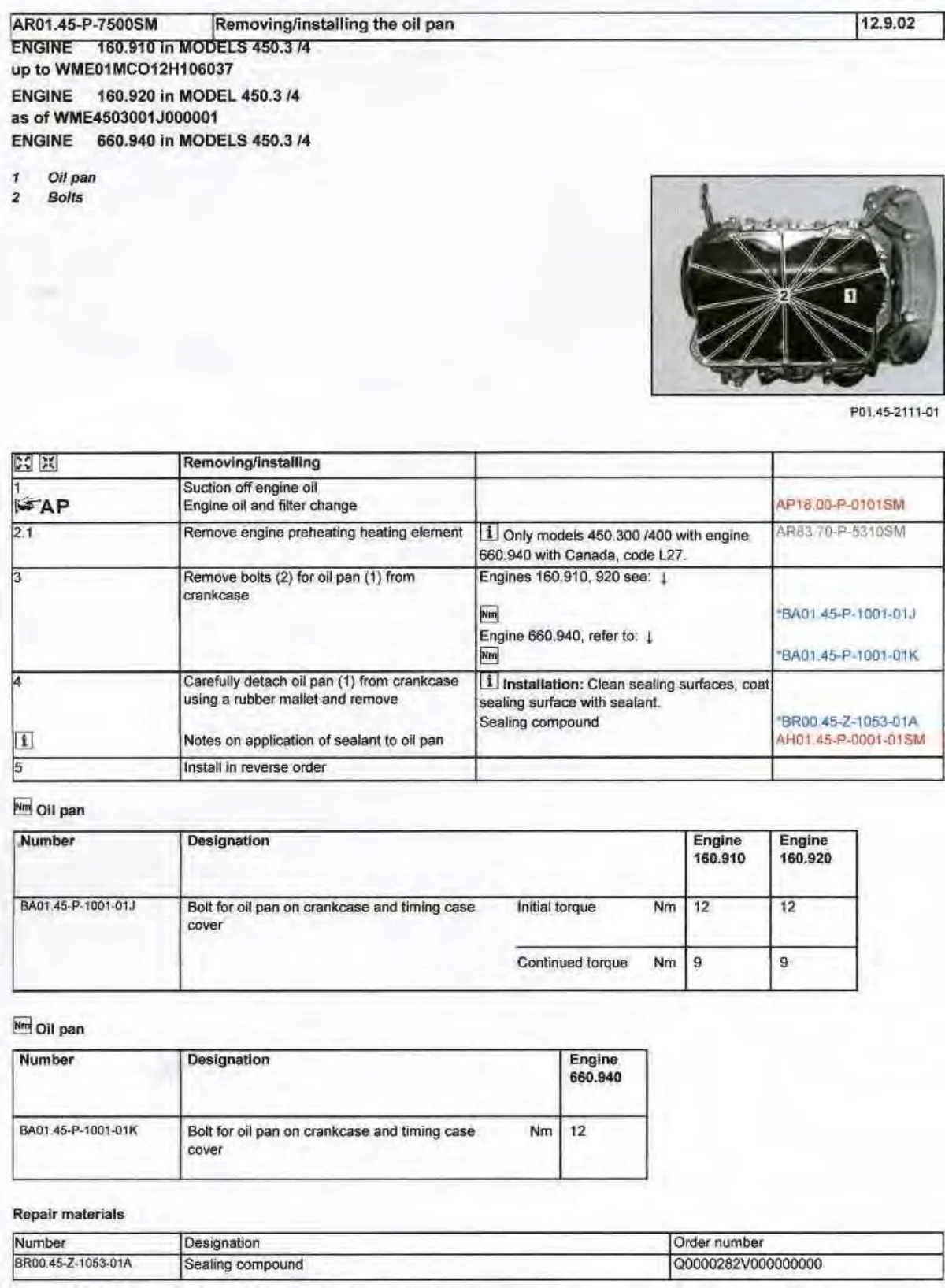

Oil pan removal and installation procedure for Smart 450 chassis with 160.910, 160.920, and 660.940 engines; includes exploded view, numbered steps, and torque specifications.

Oil pan exploded view diagram with service procedure steps and bolt torque specifications for Smart fortwo 450 chassis.
