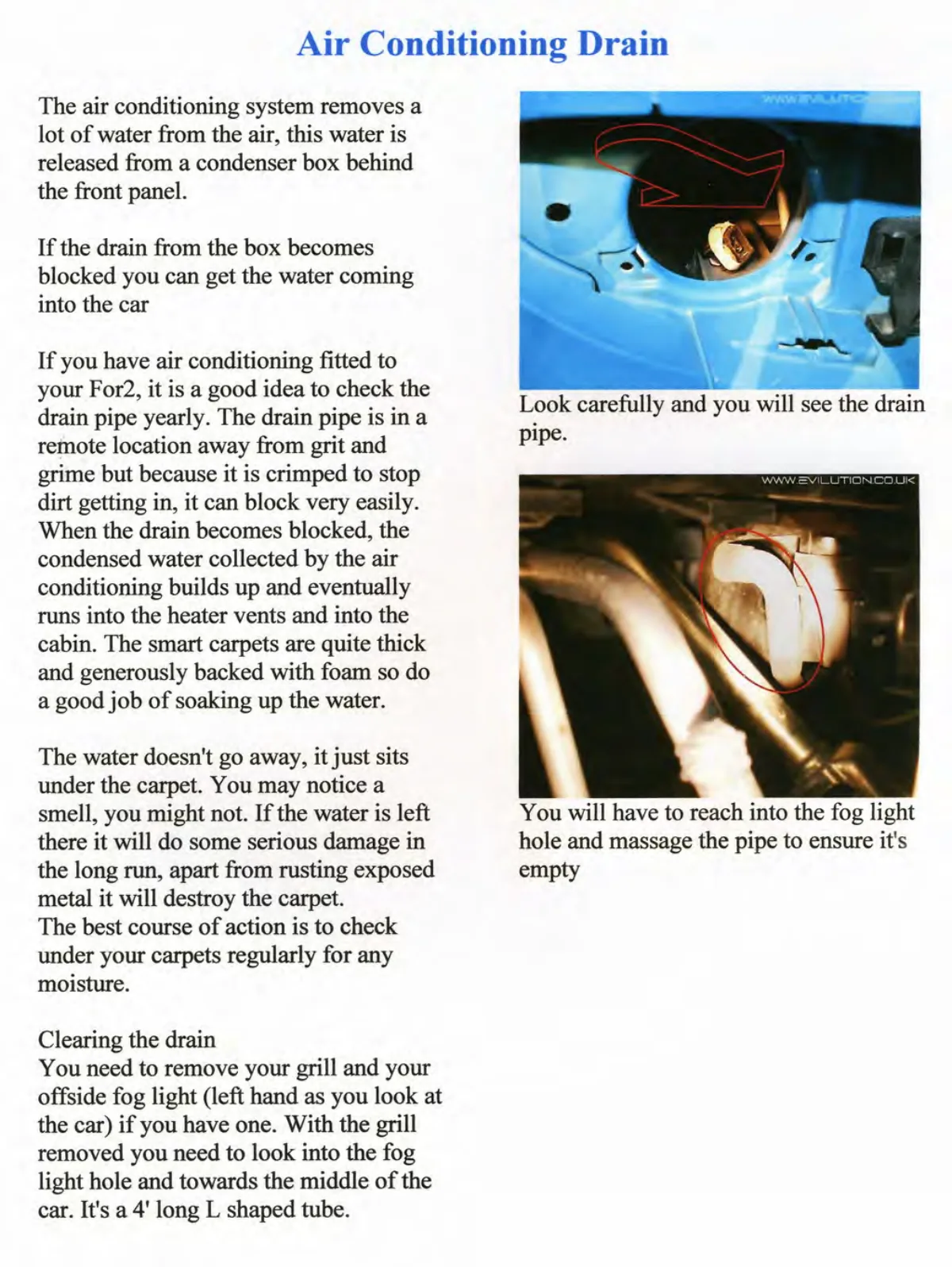

Air conditioning drain pipe location and maintenance procedure for Smart ForTwo, showing condenser box behind front panel and drain access through fog light hole.

AC drain pipe visible through fog light opening with red outline; lower image shows drain pipe access point near fog light housing.
