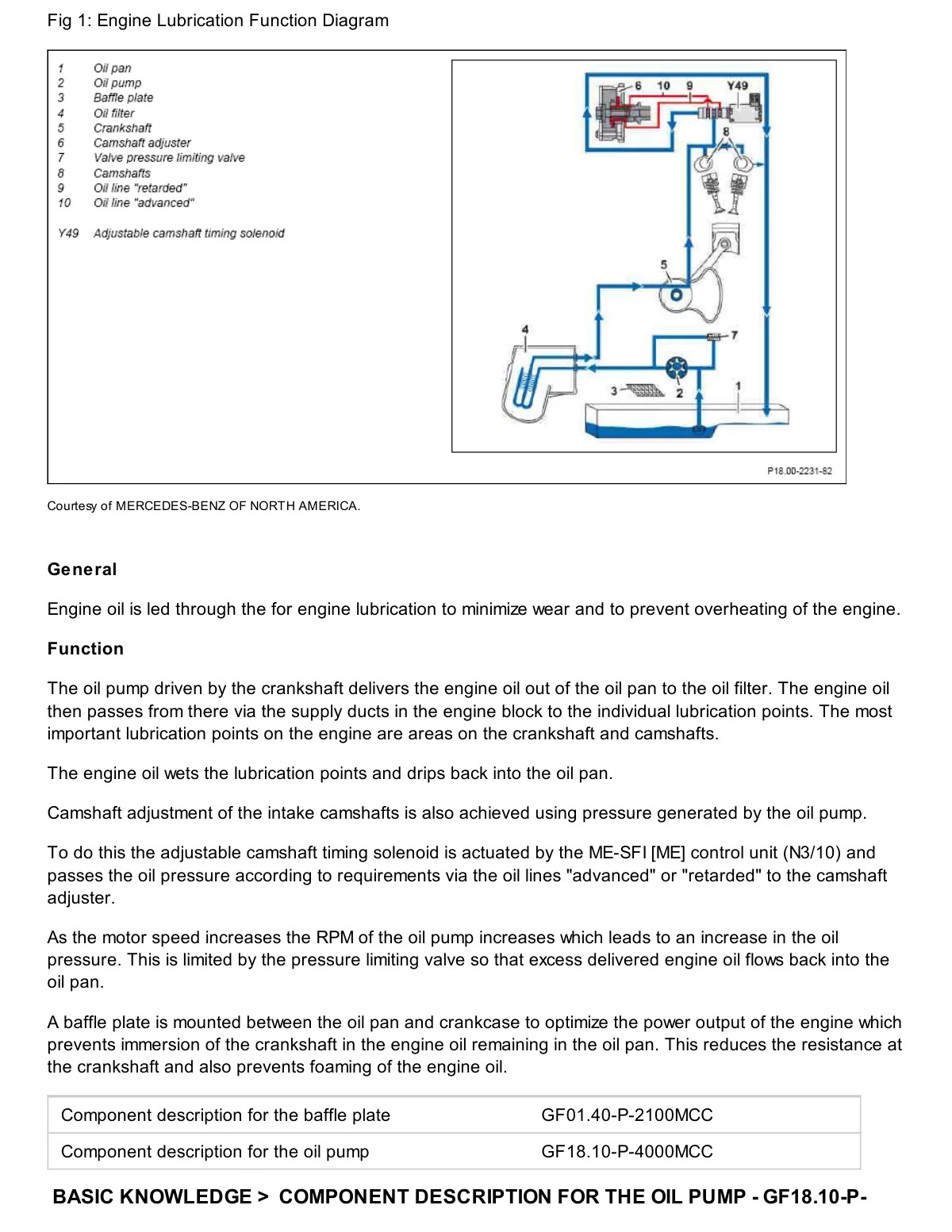

Engine lubrication function diagram showing oil pan, pump, filter, crankshaft, camshaft, and pressure limiting valve with adjustable camshaft timing solenoid Y49.

Schematic diagram of engine oil circulation system with numbered components and flow lines.
