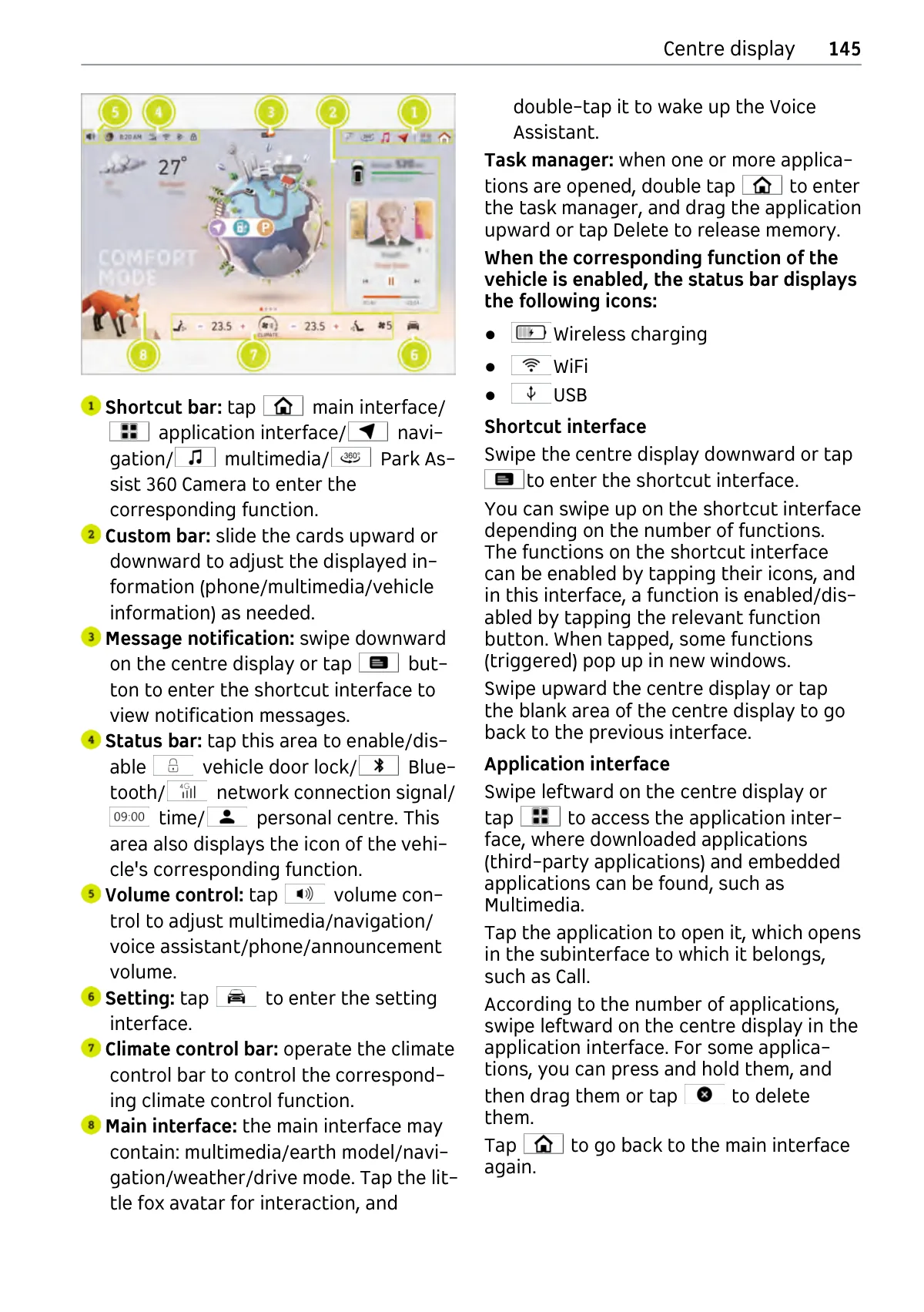

Centre display interface layout with numbered callouts explaining shortcuts, custom bar, notifications, status bar, volume control, settings, climate control, and main interface functions.

Annotated centre display screen showing 8 numbered callout areas describing infotainment system controls and functions.
