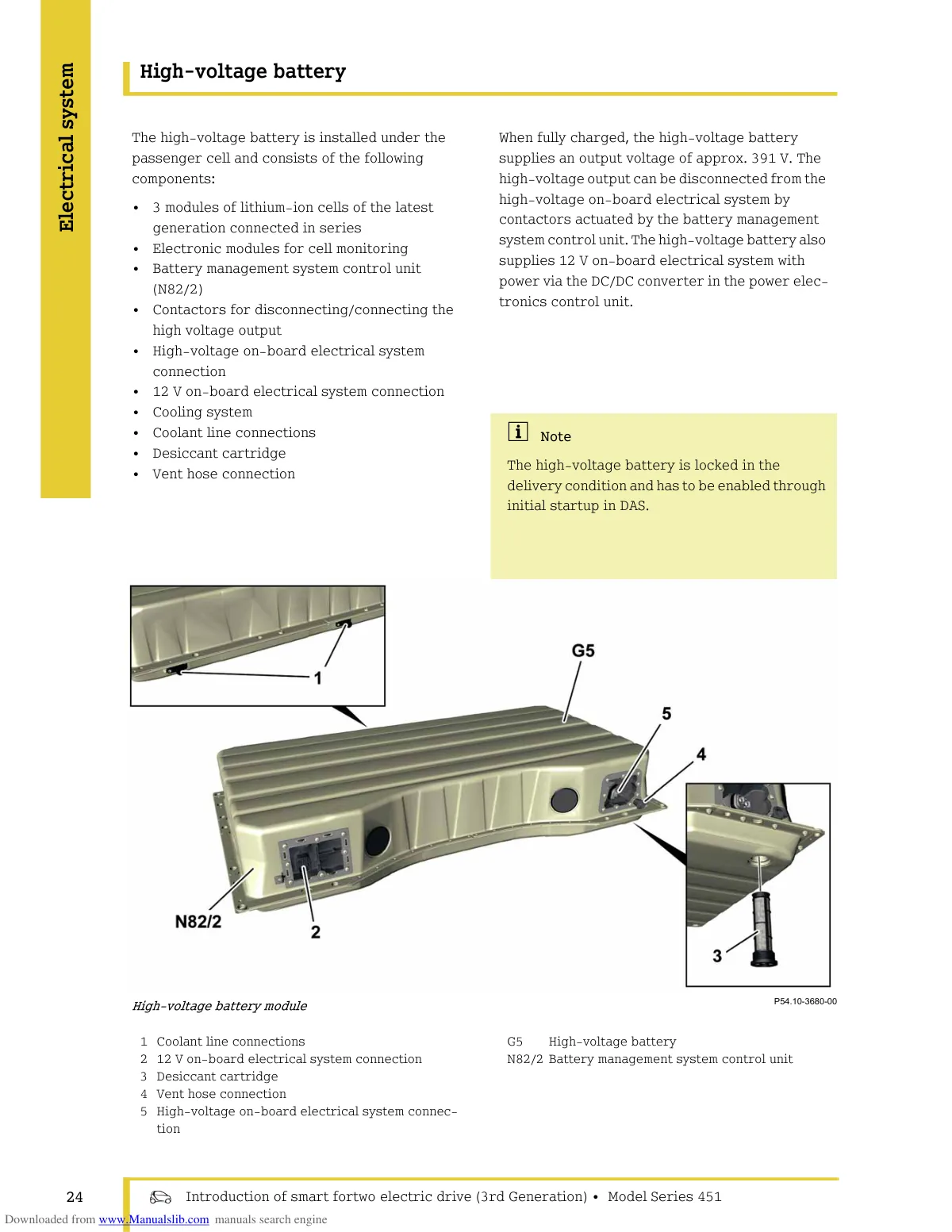

High-voltage battery module components and installation location in Smart Fortwo 451 electric vehicle.

Exploded view of EV battery pack showing coolant lines, venting, and management system connections.
