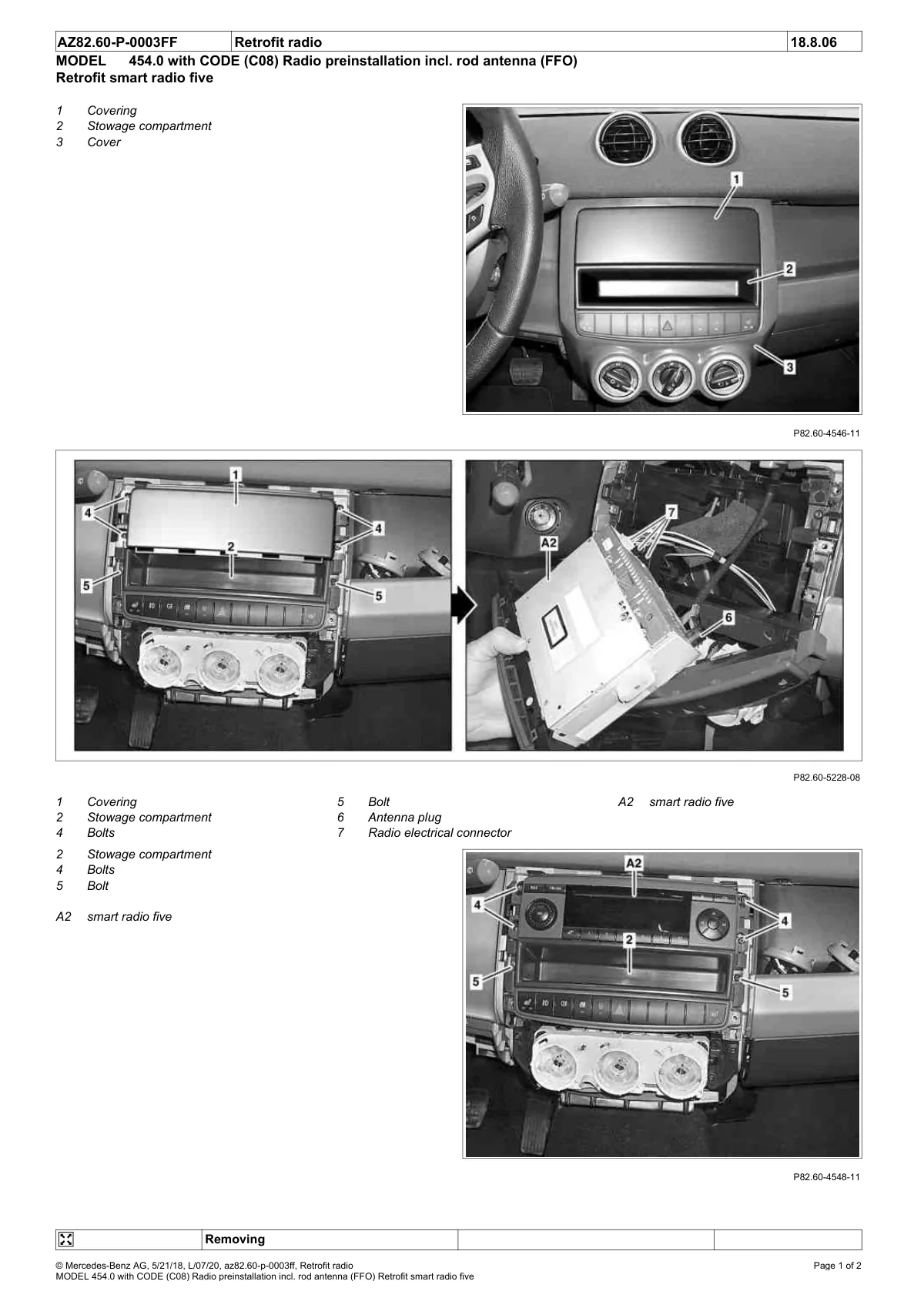

Smart radio five retrofit installation procedure for chassis 454, showing dashboard location, removal steps, and component details with numbered callouts.

Radio retrofit steps for smart fortwo 454 including dashboard view, removal sequence, and antenna/connector locations.
