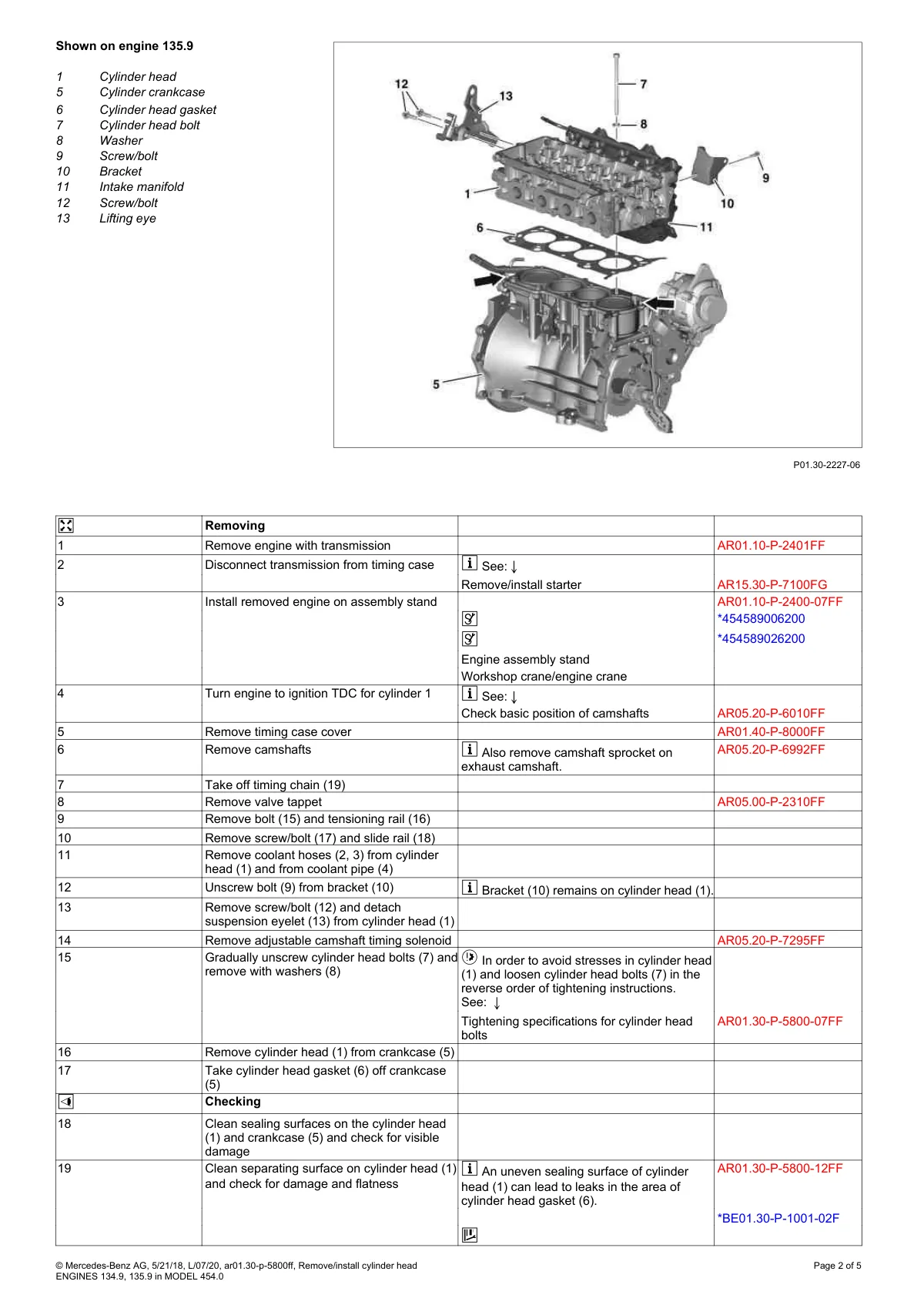

Engine 135.9 cylinder head and crankcase exploded view with numbered callout components and removal procedure table.

Exploded view diagram of engine cylinder head and crankcase with 13 numbered parts and removal/checking steps.
