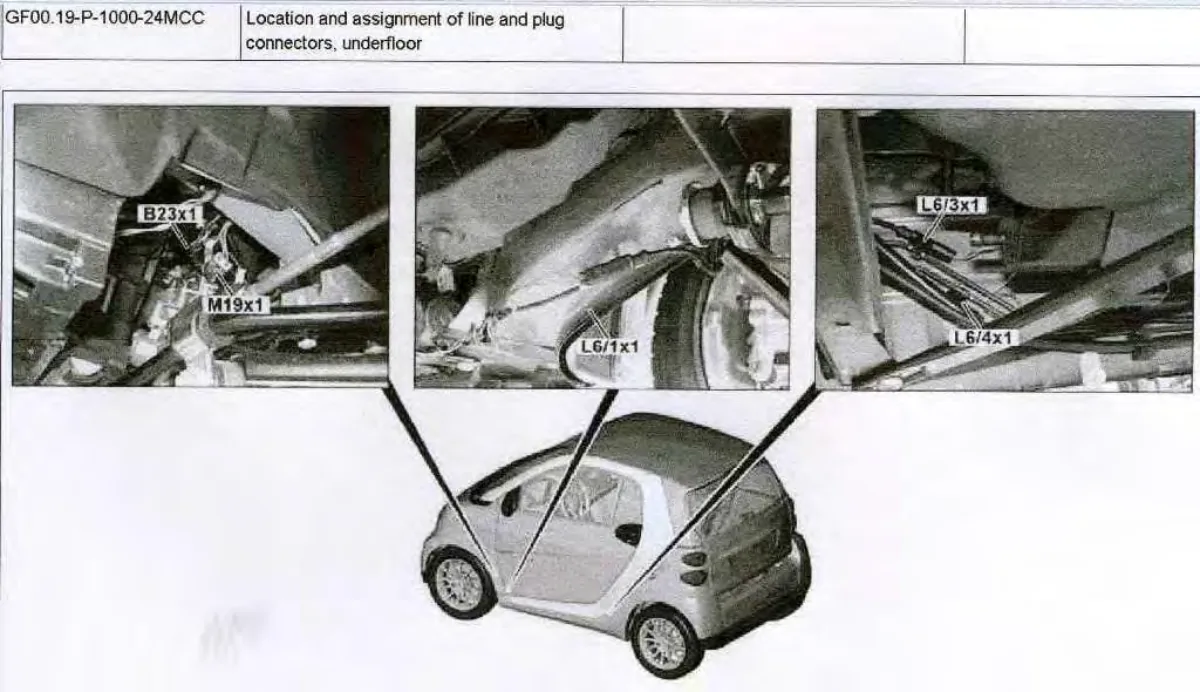

Underfloor line and plug connector locations on Smart fortwo 450/451 chassis with callout identifiers B23x1, M19x1, L6/3x1, L6/1x1, L6/4x1.

Three detailed underfloor photos with labeled connector locations and a reference diagram of Smart fortwo.
