High-voltage battery charging procedures, socket components, indicator lamp status, and Plug&Charge cable connection for smart fortwo 453.

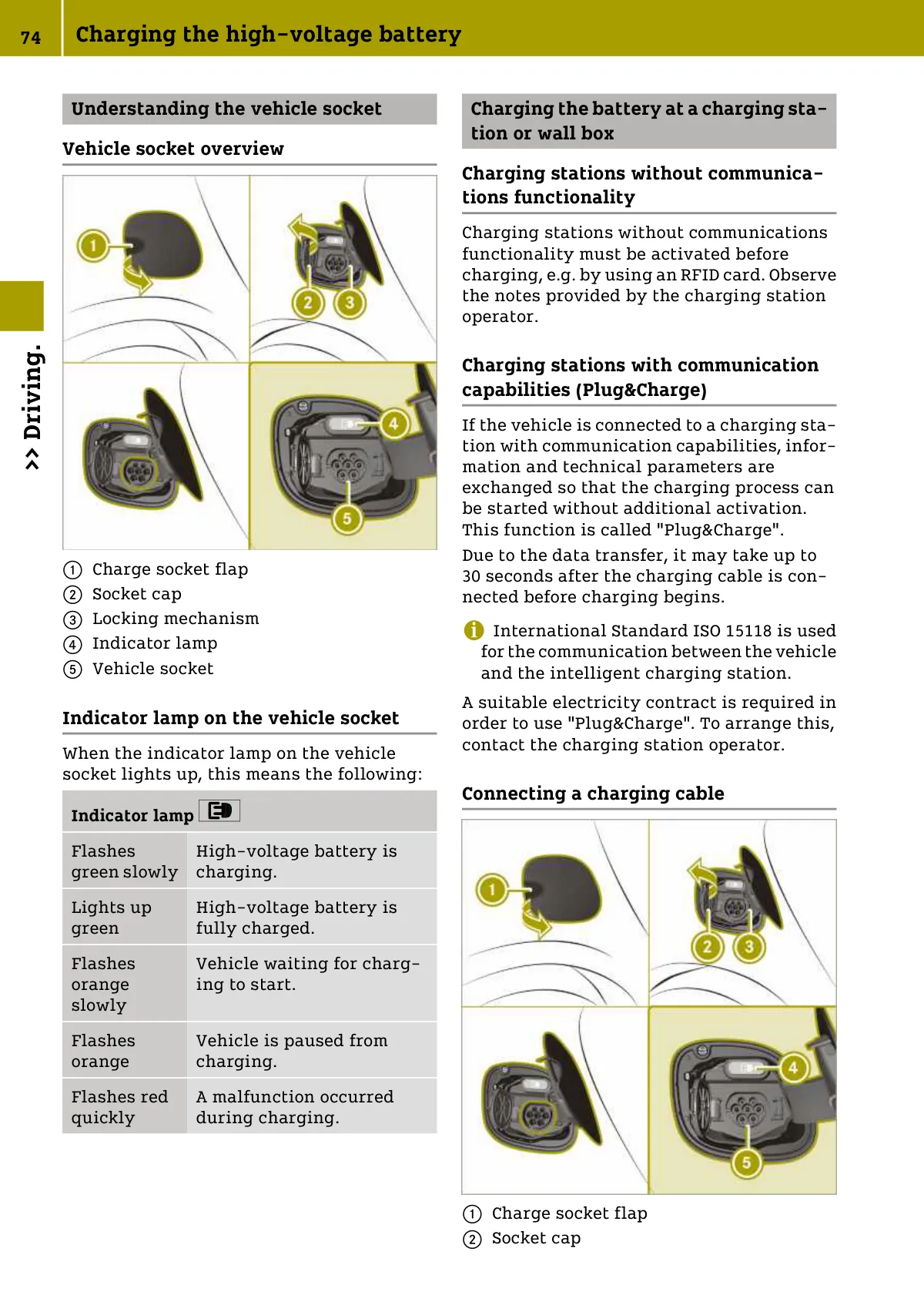

EV charging socket overview, indicator lamp meanings, and cable connection steps with numbered callouts.
