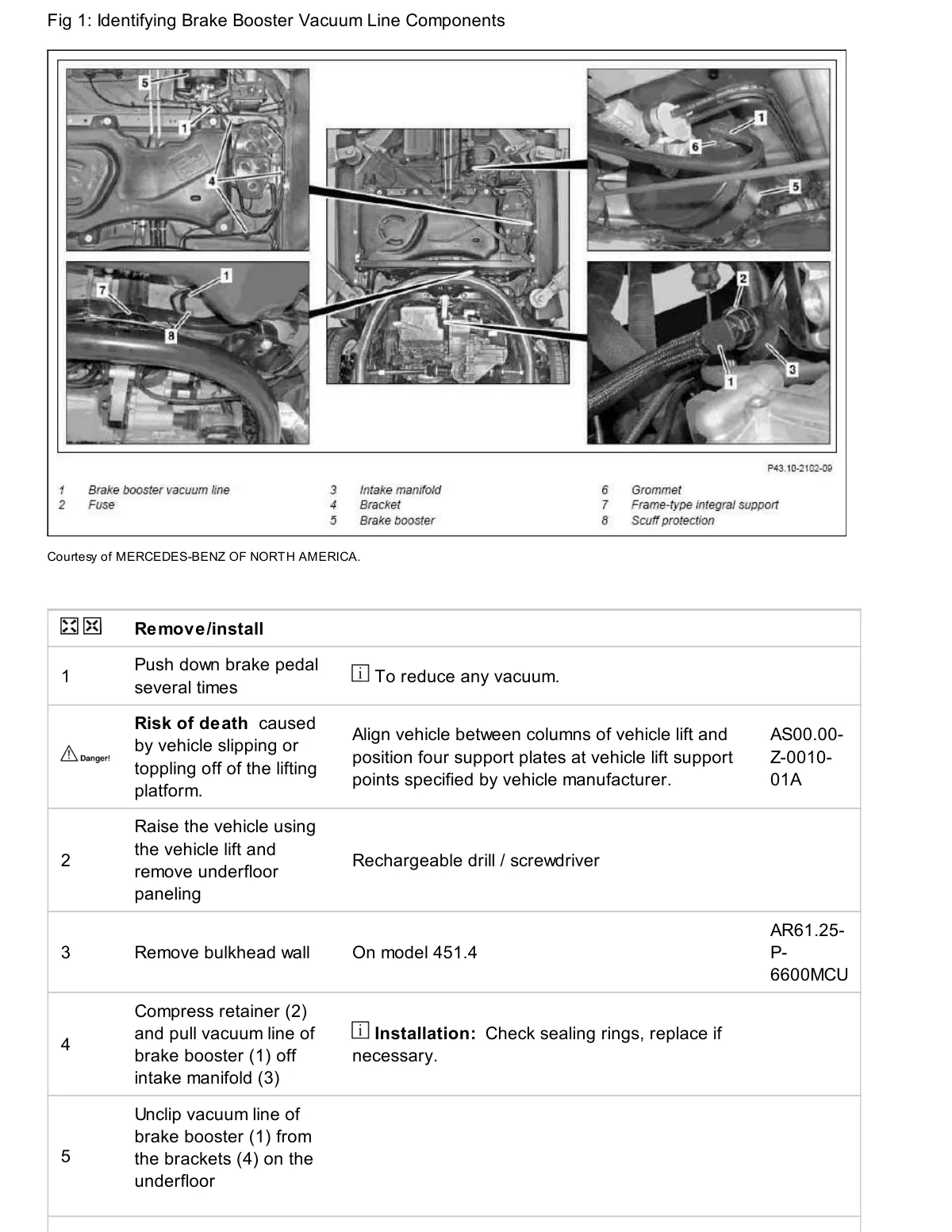

Brake booster vacuum line components and removal/installation procedure for smart fortwo 451 chassis with numbered callouts.

Technical diagram showing brake booster vacuum line location and service steps with numbered component callouts.
