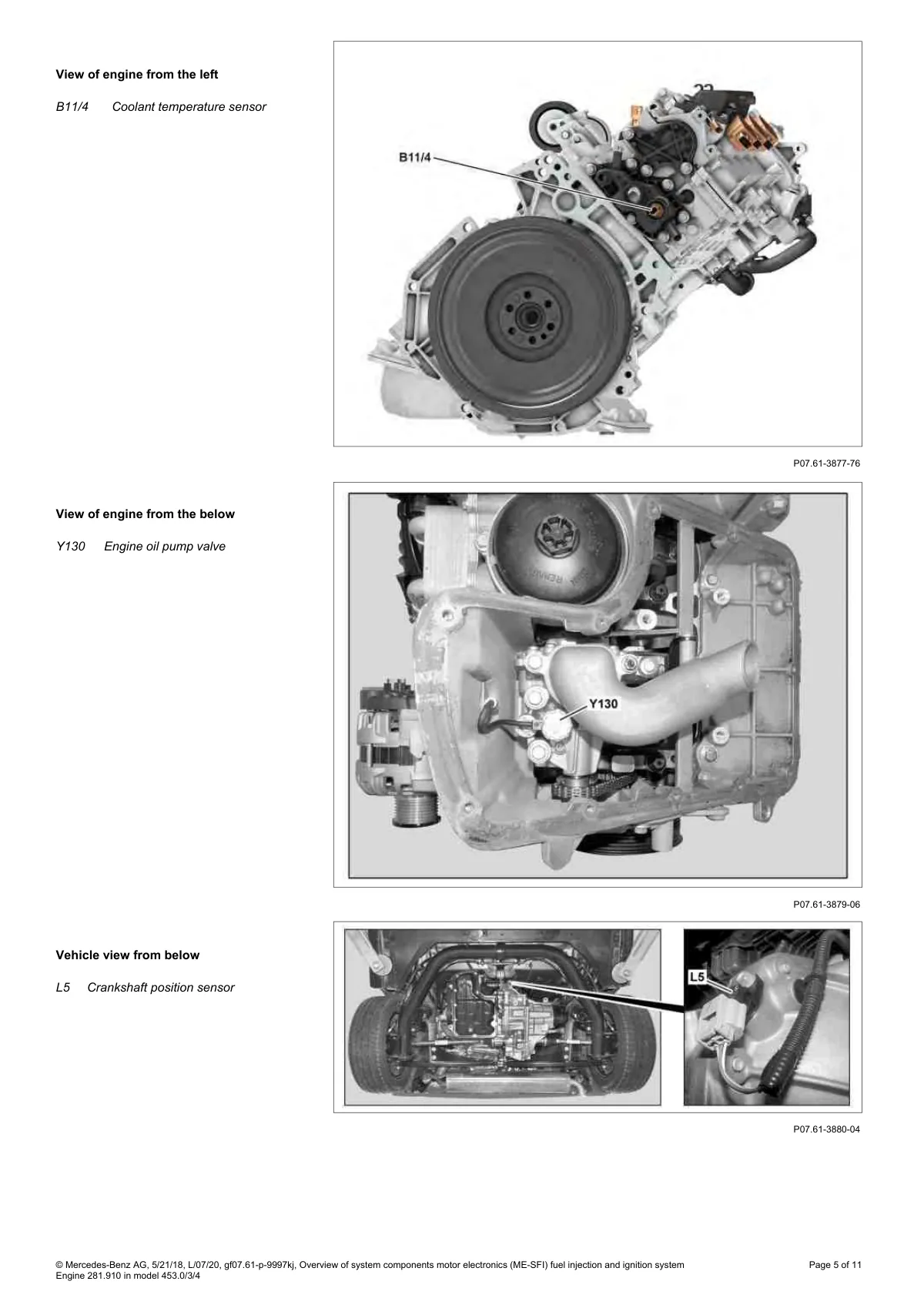

Engine left side view showing coolant temperature sensor B11/4, bottom view with oil pump valve Y130, and underbody crankshaft position sensor L5 location.

Three views of Smart Fortwo 453 engine: left side, underside, and vehicle underbody with component callouts.
