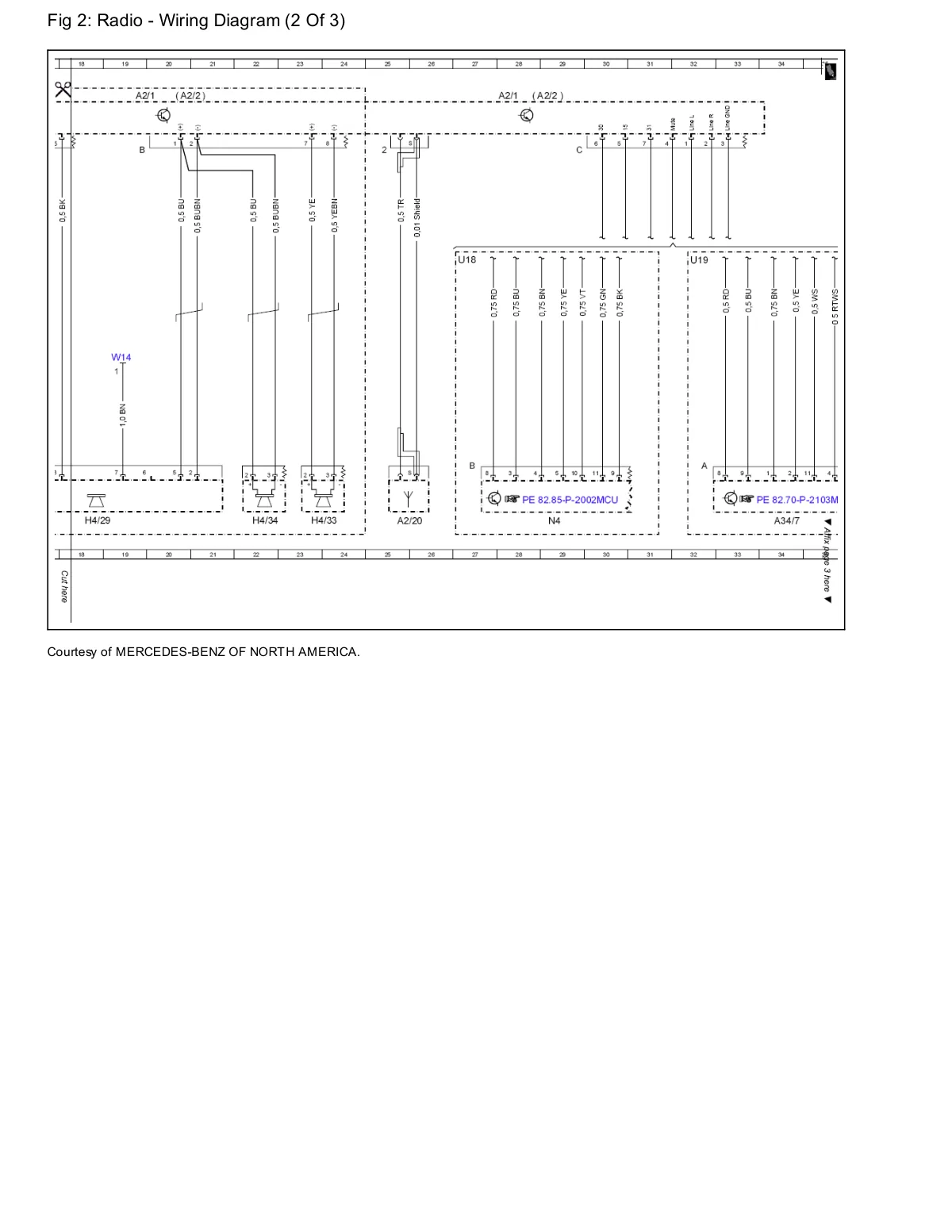

Radio wiring diagram part 2 of 3 showing connector circuits and signal routing for Smart 450/451/452/454 models.

Wiring diagram with numbered columns, connector details U16/U19/N4/N6, and circuit lines labeled A21/1 and A21/1 A22/1.
