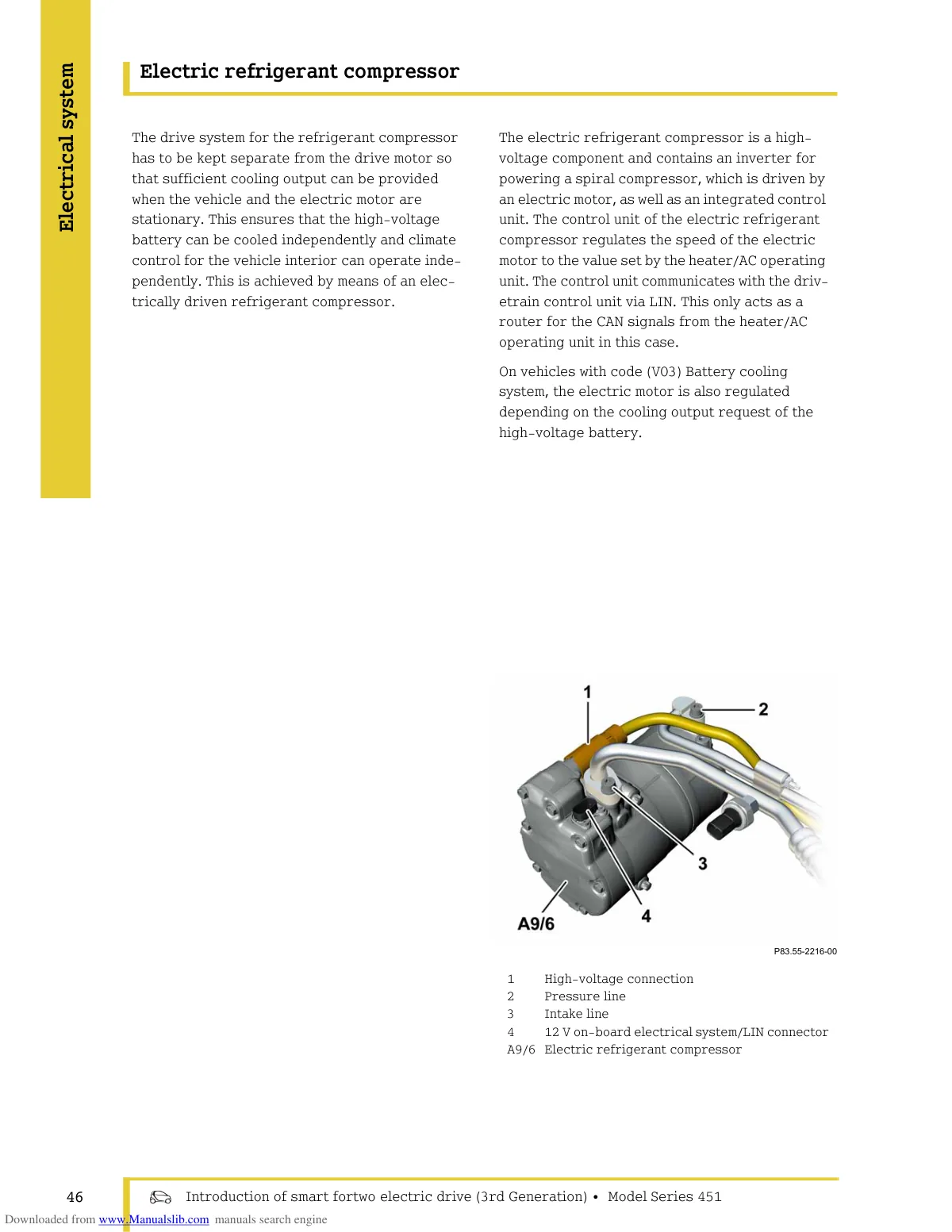

Electric refrigerant compressor assembly with high-voltage connection, pressure line, intake line, and LIN connector for smart fortwo 451 EV.

Labeled diagram of electric refrigerant compressor showing four numbered callouts and part designations.

View full-size image ↗

See all EV-specific figures for the Fortwo (451), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
