Chassis 454 steering lock cylinder removal and installation procedure with exploded views and step-by-step instructions.

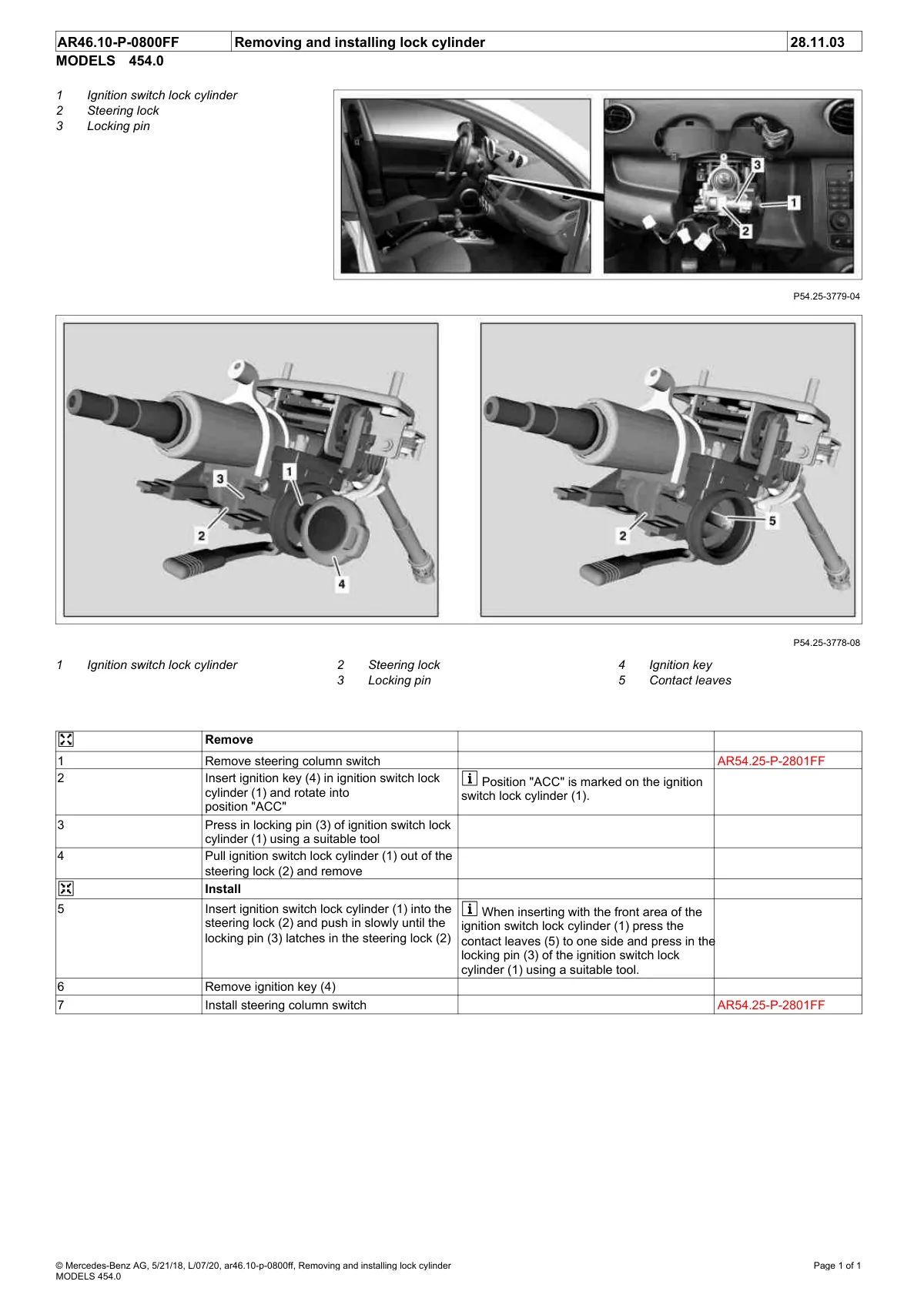

Technical diagram showing ignition switch lock cylinder components and removal steps for smart fortwo 454

View full-size image ↗

See all Chassis figures for the Fortwo / Forfour (453), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
