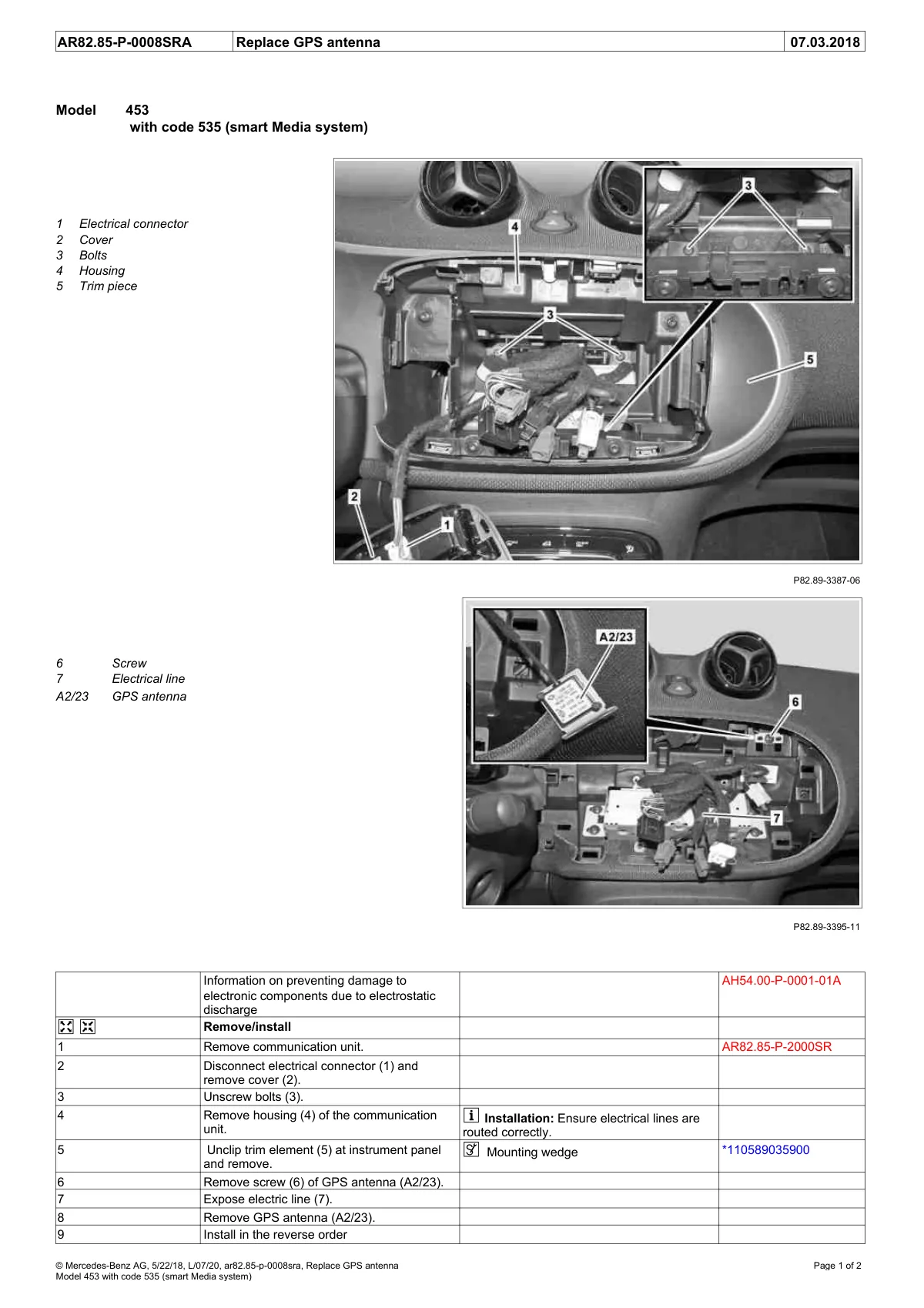

Replace GPS antenna on chassis 453 with code 535 smart Media system, showing electrical connector, housing, bolts, and trim piece locations.

Disassembly diagram of GPS antenna components with numbered callouts for 453 model.
