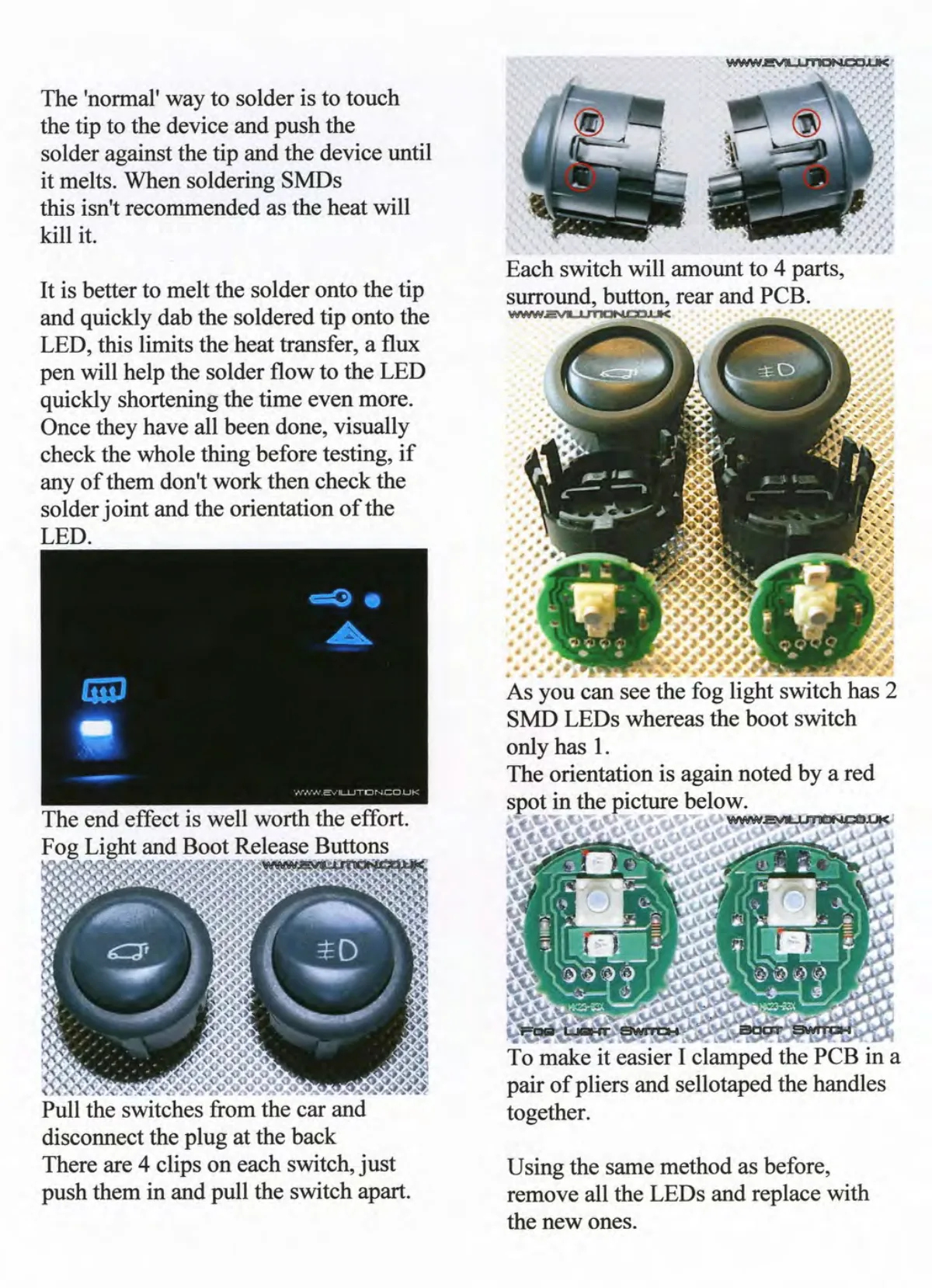

Fog light and boot release button LED upgrade procedure, showing solder techniques, switch disassembly, PCB layouts, and SMD LED orientation for smart fortwo.

LED upgrade guide with soldering instructions, switch components, and PCB circuit boards for fog and boot buttons.
