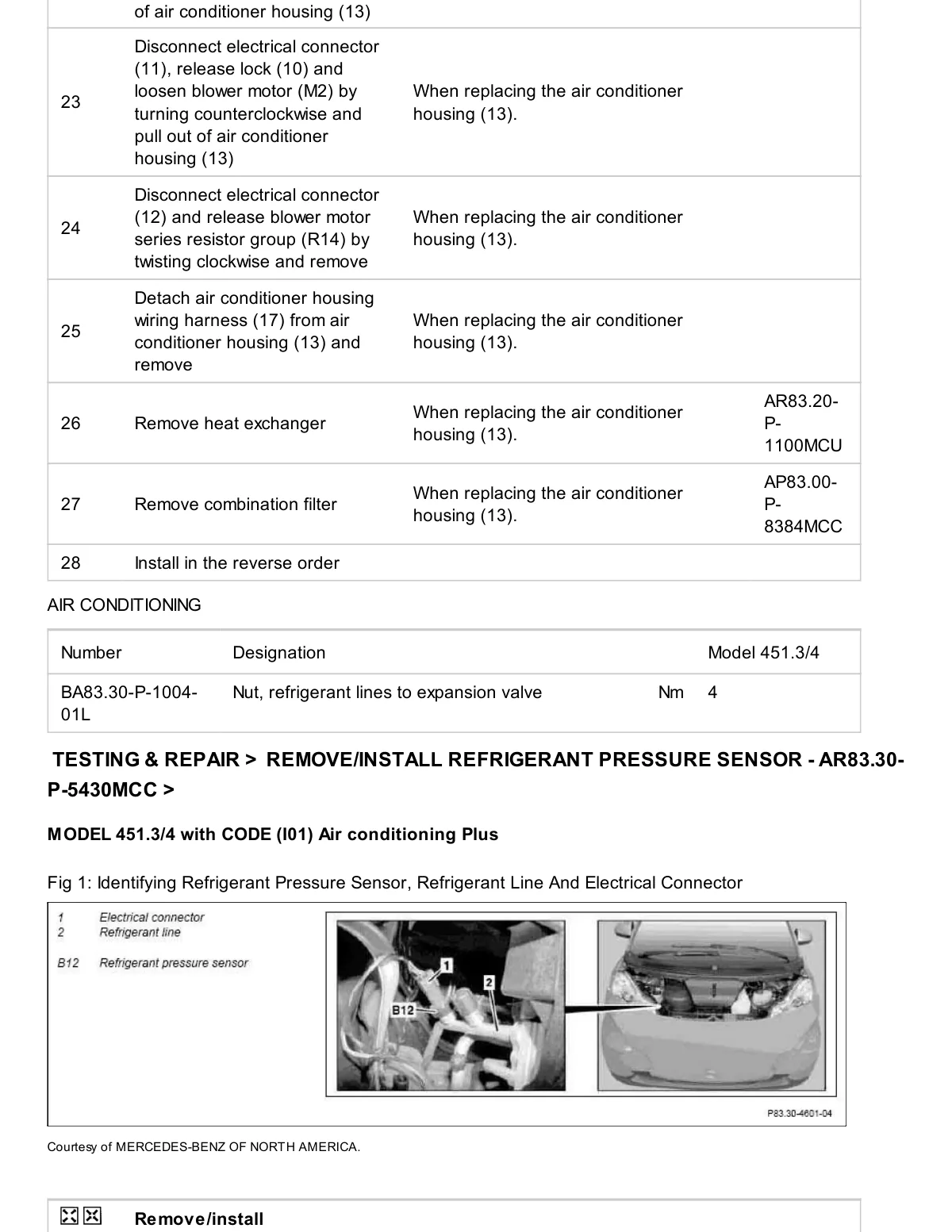

Air conditioning housing replacement procedure steps 23–28, refrigerant pressure sensor identification, and torque specification for model 451.3/4.

See all HVAC & Comfort figures for the Fortwo (450), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
