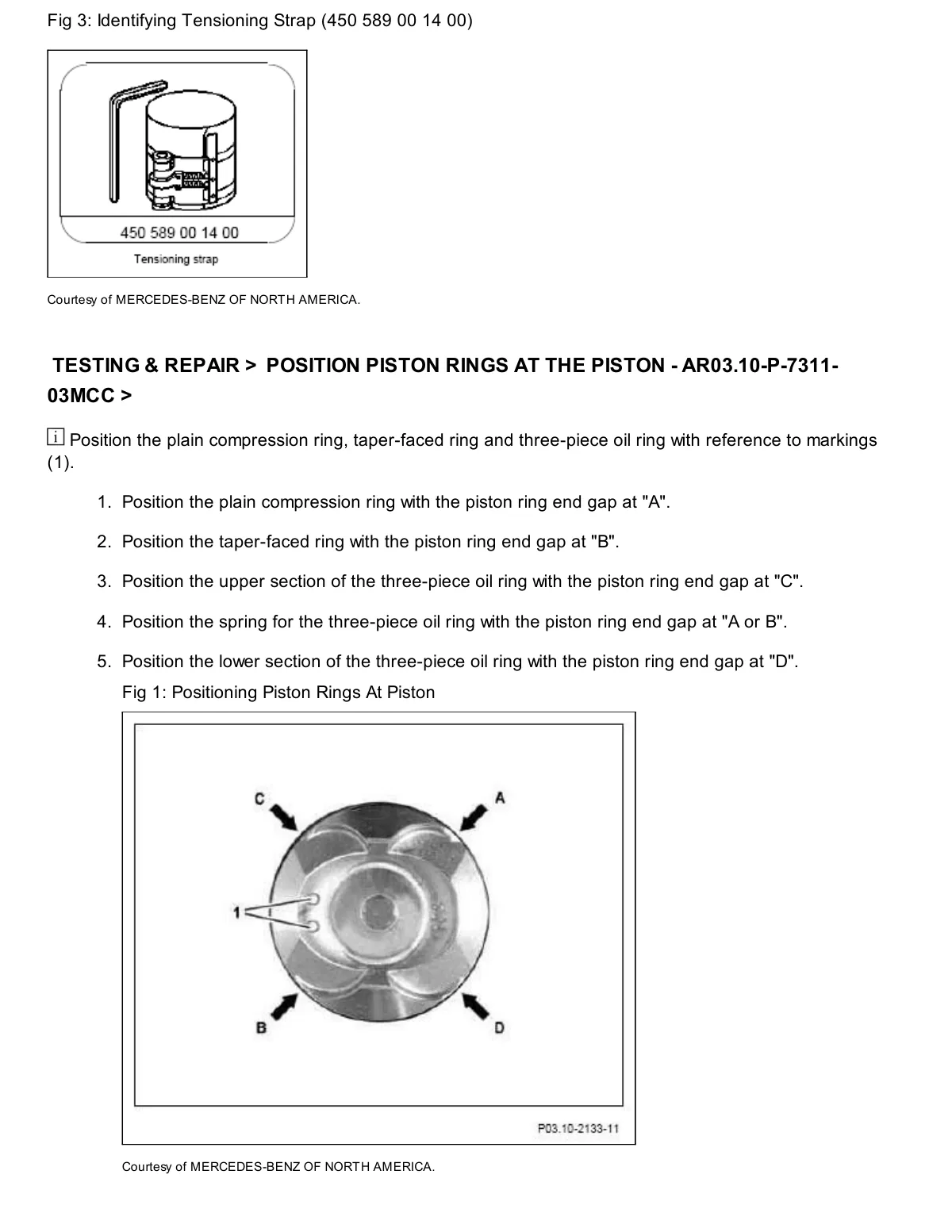

Piston ring positioning procedure for Smart 450 series, showing tensioning strap and four ring placement locations A–D.

Diagram showing piston ring positions labeled A through D on a piston, with tensioning strap illustration above.
