ME-SFI fuel injection and ignition system control unit output signals reference chart for 450/451/452/454 Smart models.

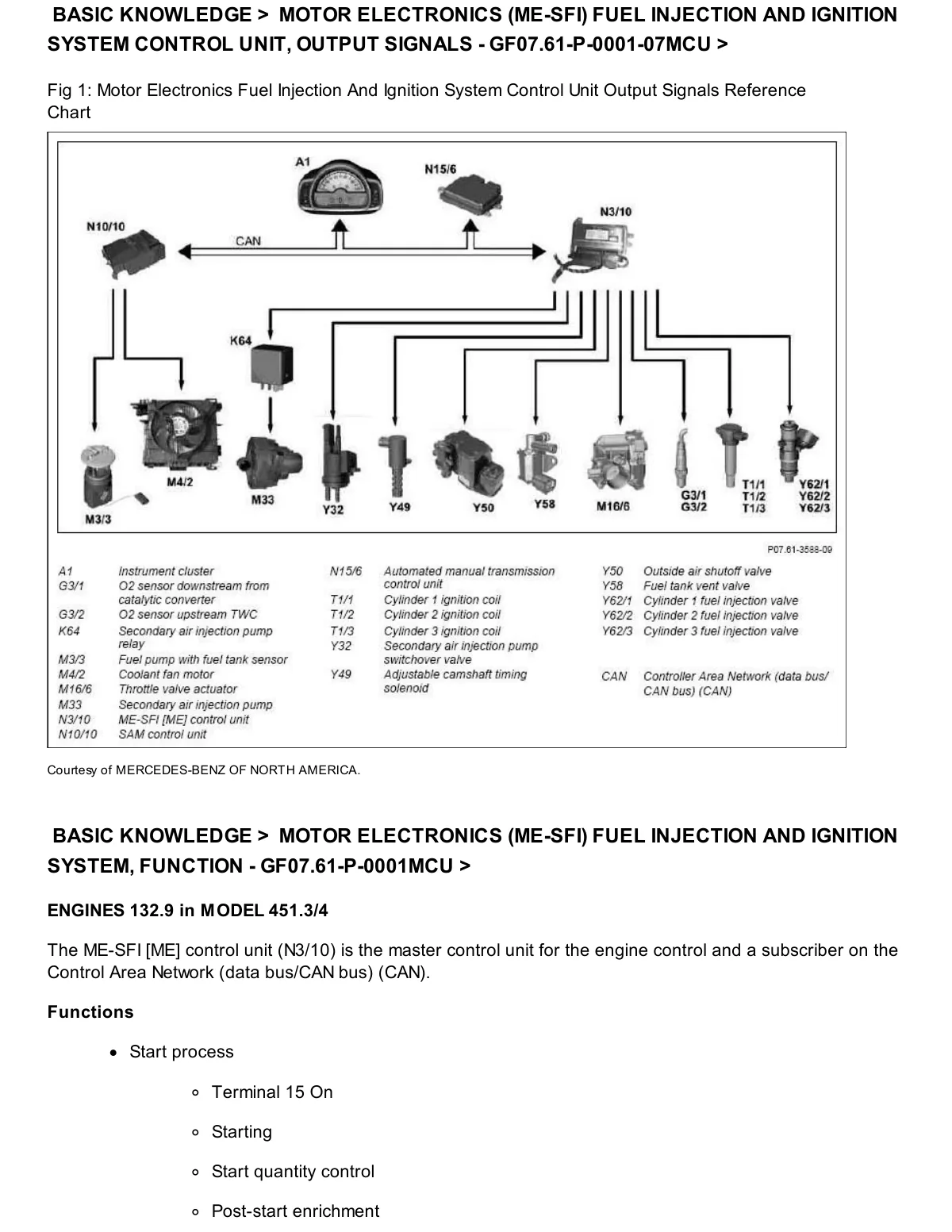

Schematic diagram showing ME-SFI control unit connections to engine sensors, injectors, ignition coils, and CAN bus.
