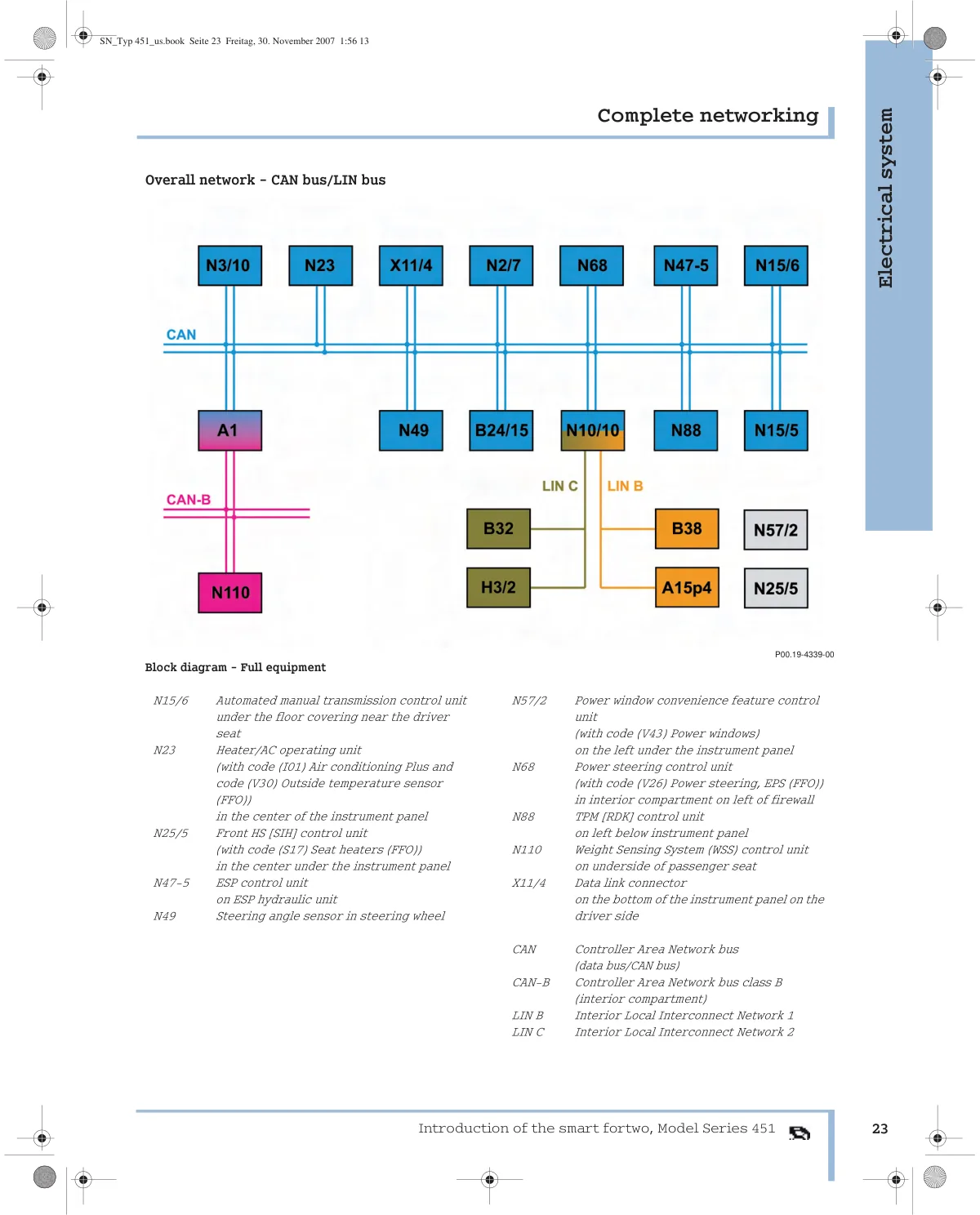

Complete networking diagram showing CAN bus/LIN bus connections between control modules for smart fortwo 451 electrical system.

Electrical system network diagram with CAN and LIN bus connections between seven control modules and their sub-units.
