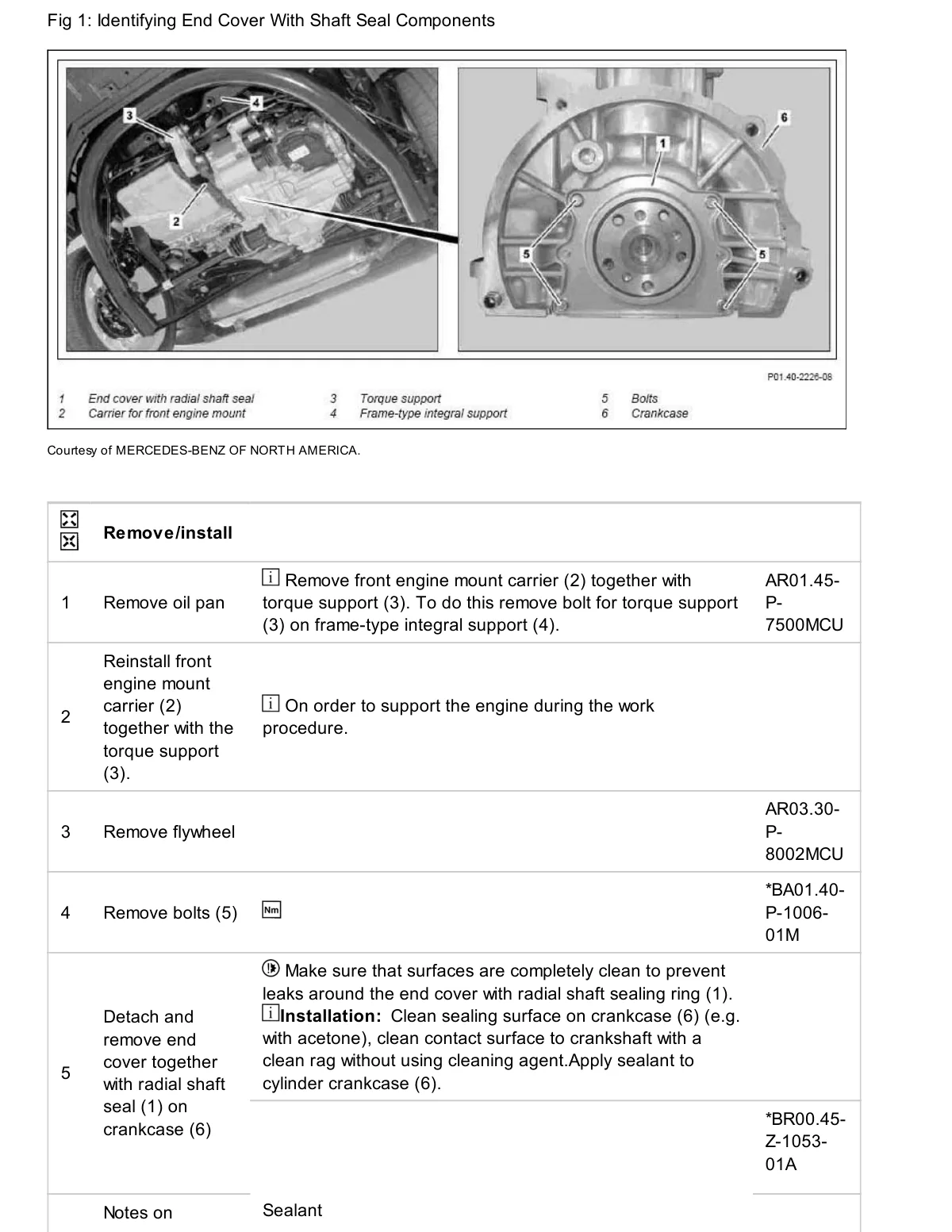

End cover with radial shaft seal components and removal/installation procedure for smart engine mounts and crankcase seal.

Exploded view of engine end cover with shaft seal, labeled parts 1-6, and removal/installation steps.
