Rear drum brake lining thickness inspection procedure for 454.0 model except CODE (30Y) disk brakes.

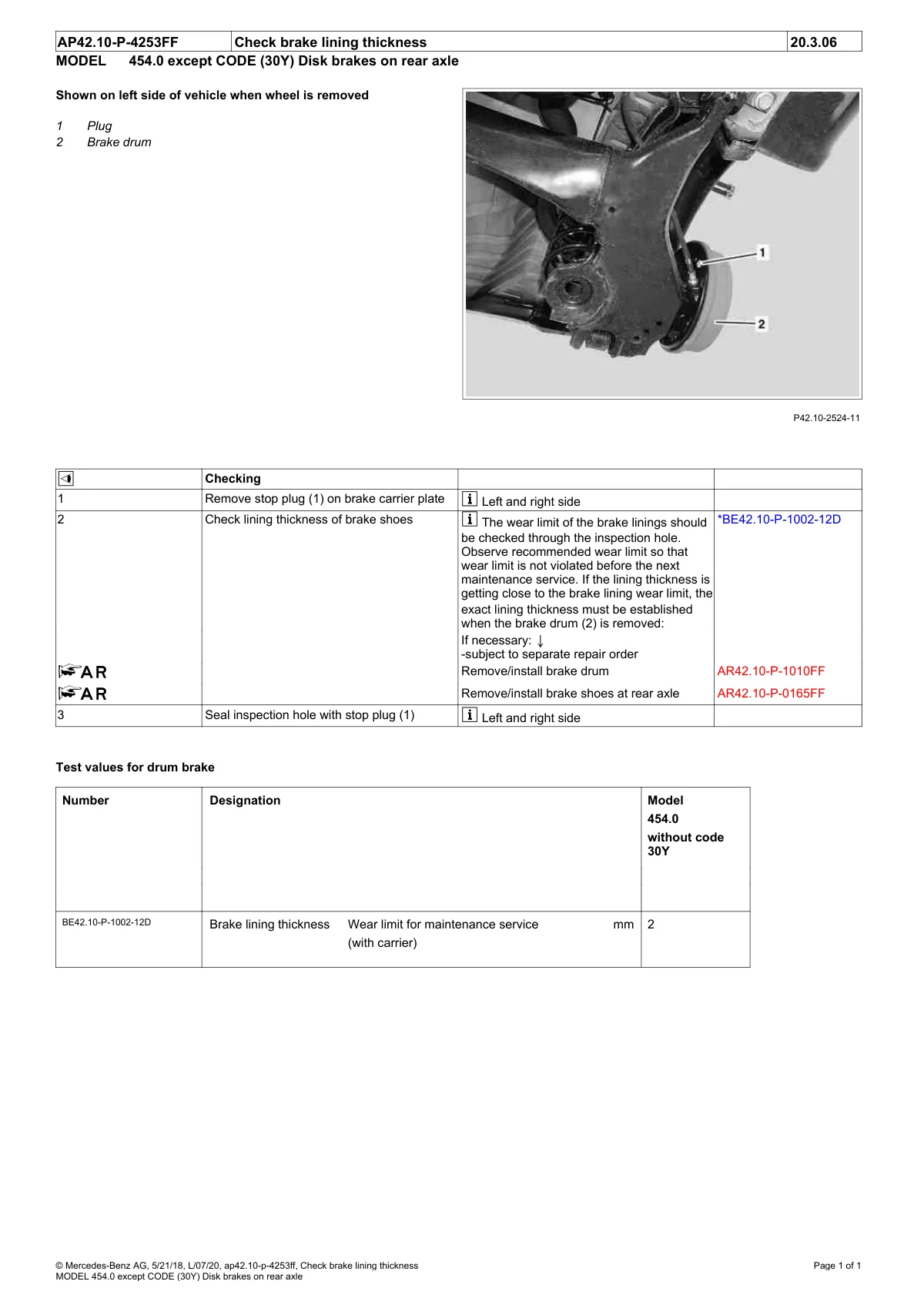

Drum brake assembly with callout labels showing plug and brake drum, inspection procedure table below.
