Smart 454 air conditioning Bowden cable removal and installation procedure at dashboard and HVAC unit.

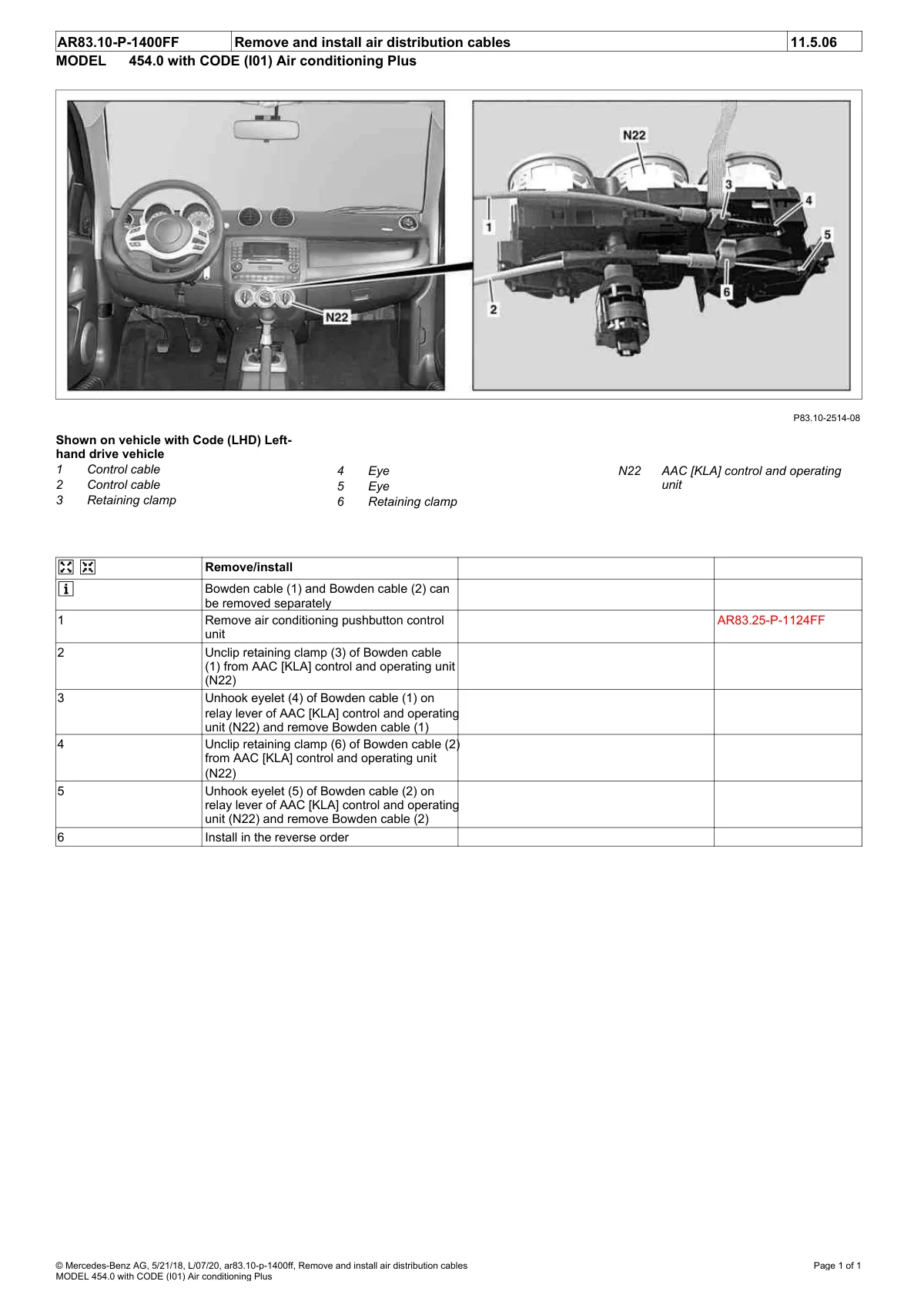

Dashboard interior view and HVAC control unit with numbered cable attachment points and retaining clamps.
