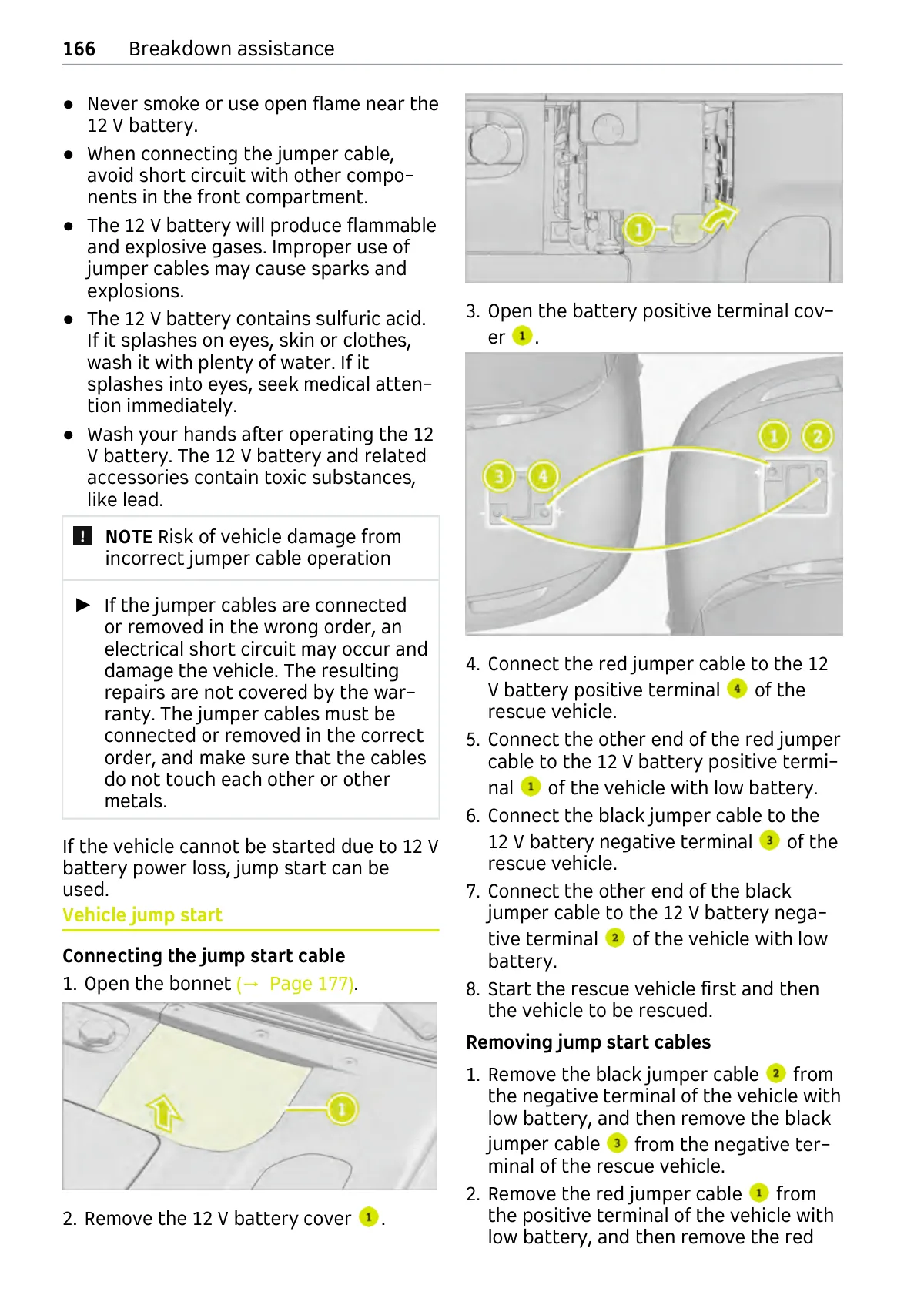

Jump start procedure for 12V battery connections with numbered callouts showing positive and negative terminal locations.

Diagram of battery terminals with four numbered callout positions for jumper cable attachment points.
