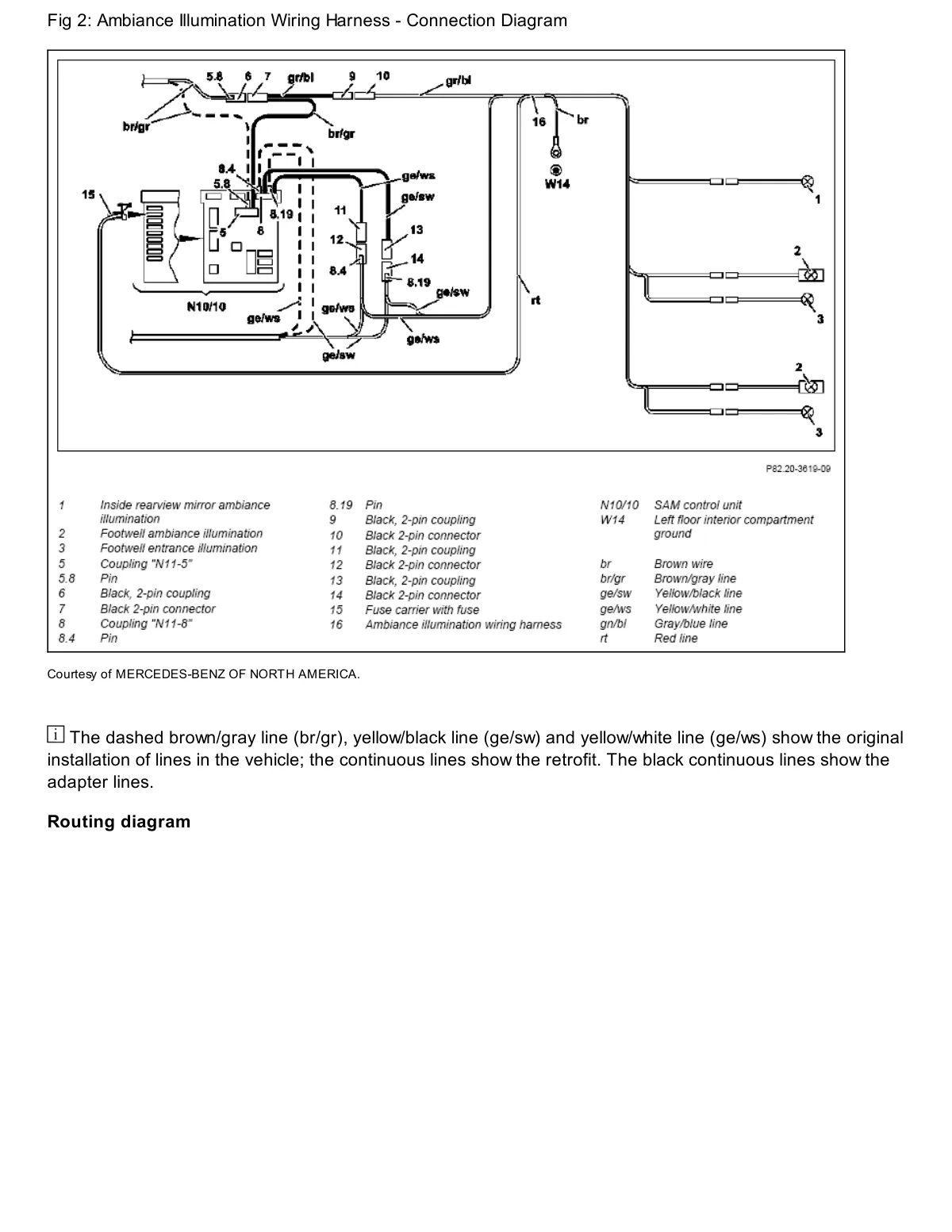

Ambiance illumination wiring harness connection diagram showing interior lighting circuits and SAM control unit connections.

Wiring diagram with numbered connectors for ambiance lighting system with footwell and rearview mirror components.
