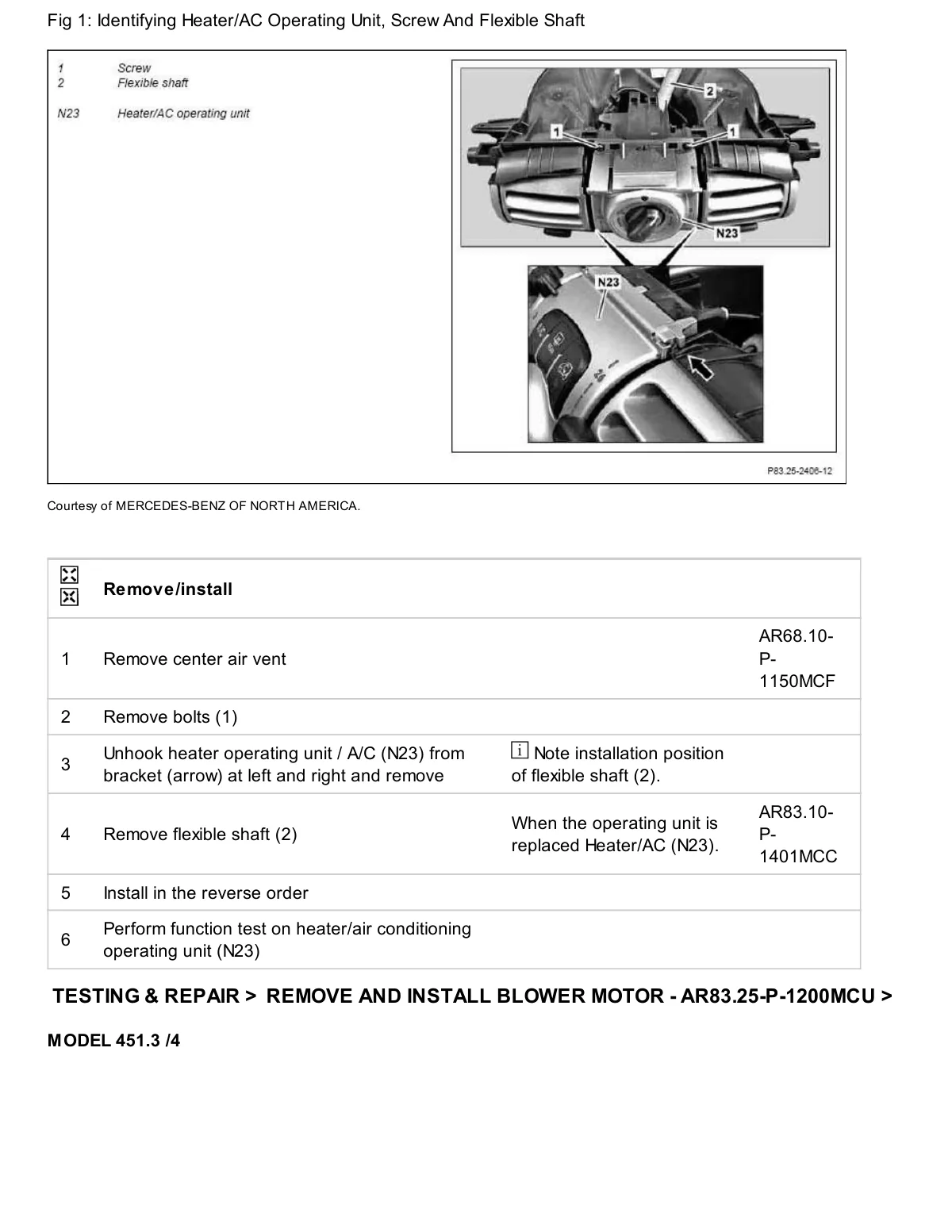

Heater/AC operating unit N23 identification with screw, flexible shaft, and removal/installation procedure for chassis 451.

Diagram showing heater AC unit N23 with numbered callouts and step-by-step removal instructions.
