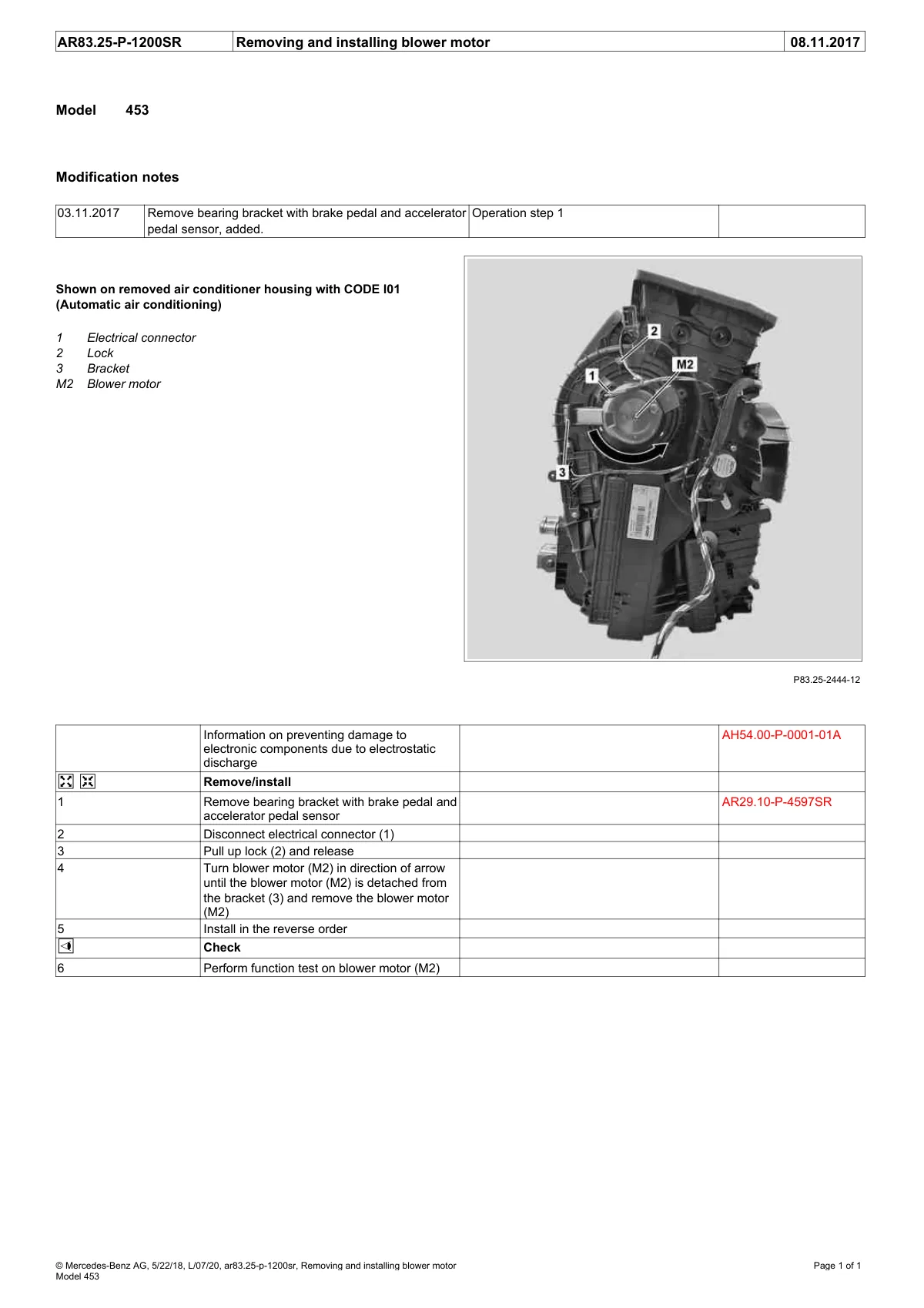

Smart 453 blower motor removal and installation procedure with exploded view of air conditioner housing assembly showing electrical connector, lock, bracket, and motor M2.

Exploded view of Smart 453 HVAC blower motor assembly with numbered callouts and service procedure steps.
