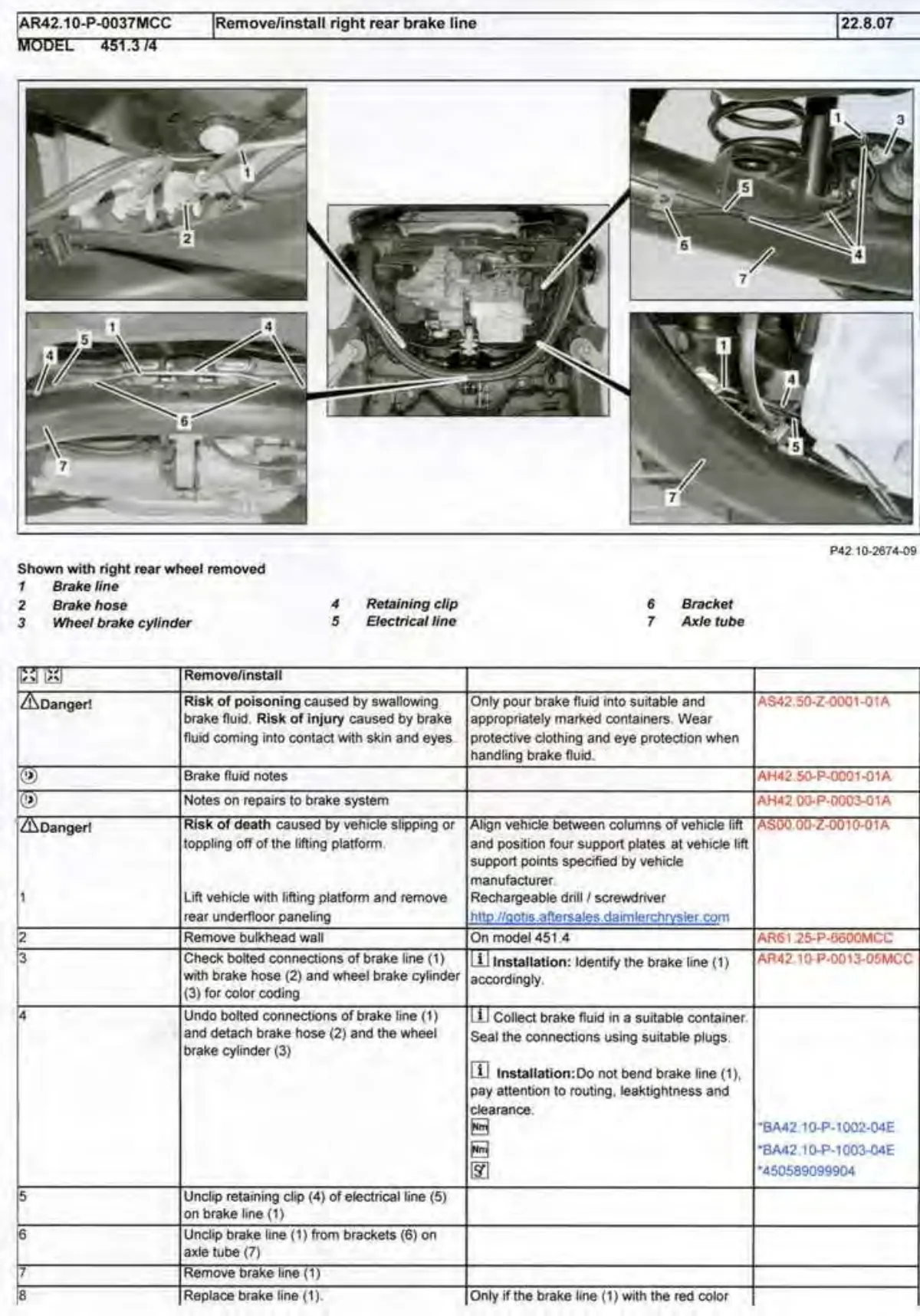

Right rear brake line removal and installation procedure for 451/3/4 chassis with numbered callouts identifying brake components.

Brake line service diagram showing wheel removed, with numbered callouts for brake line, hose, cylinder, clips, electrical line, bracket, and axle tube.

View full-size image ↗

See all Chassis figures for the Fortwo (450), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
