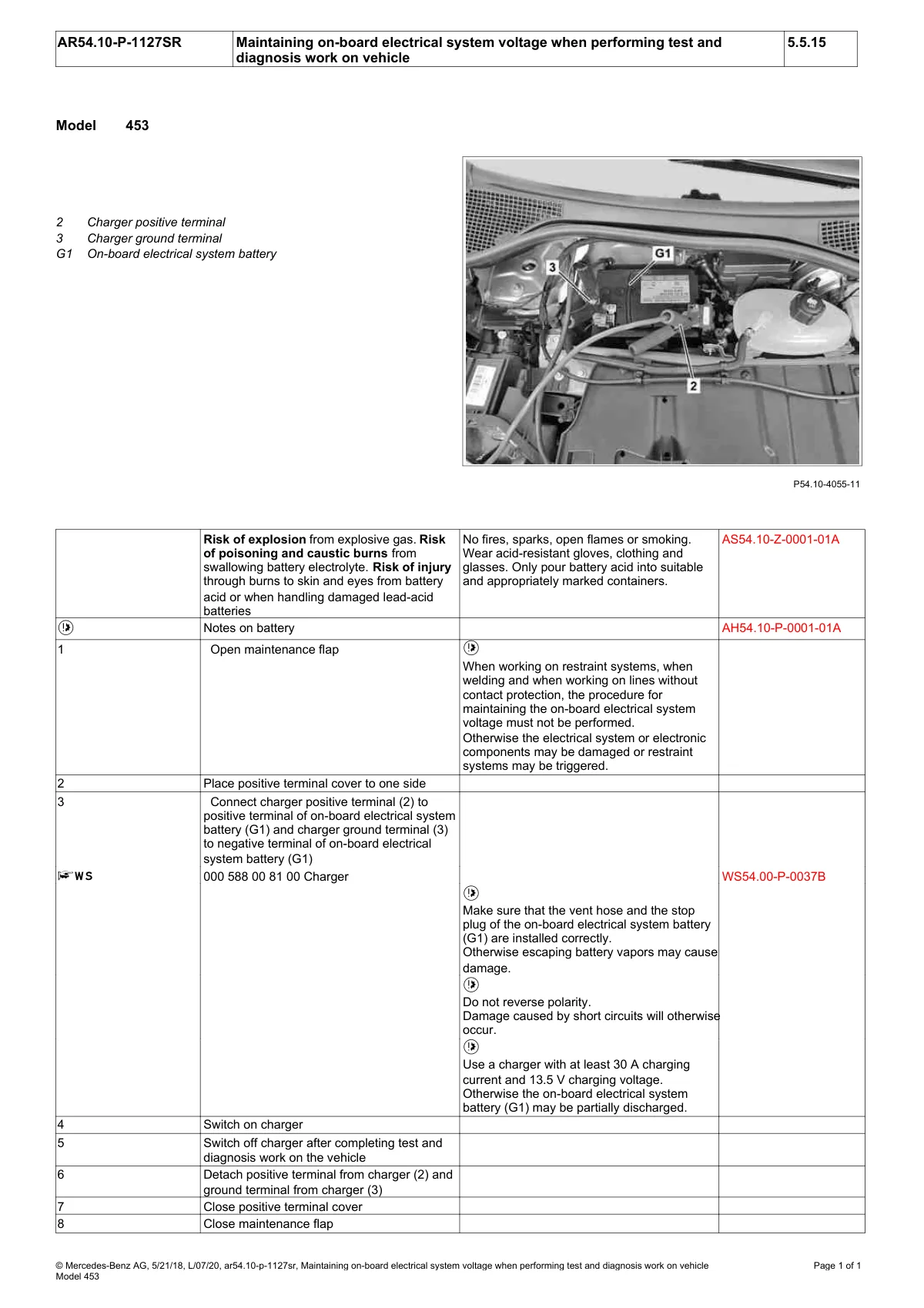

Model 453 battery charger connection procedure for maintaining electrical system voltage during service and diagnosis work.

Engine bay diagram showing charger terminal connections to battery for Smart 453 model.
