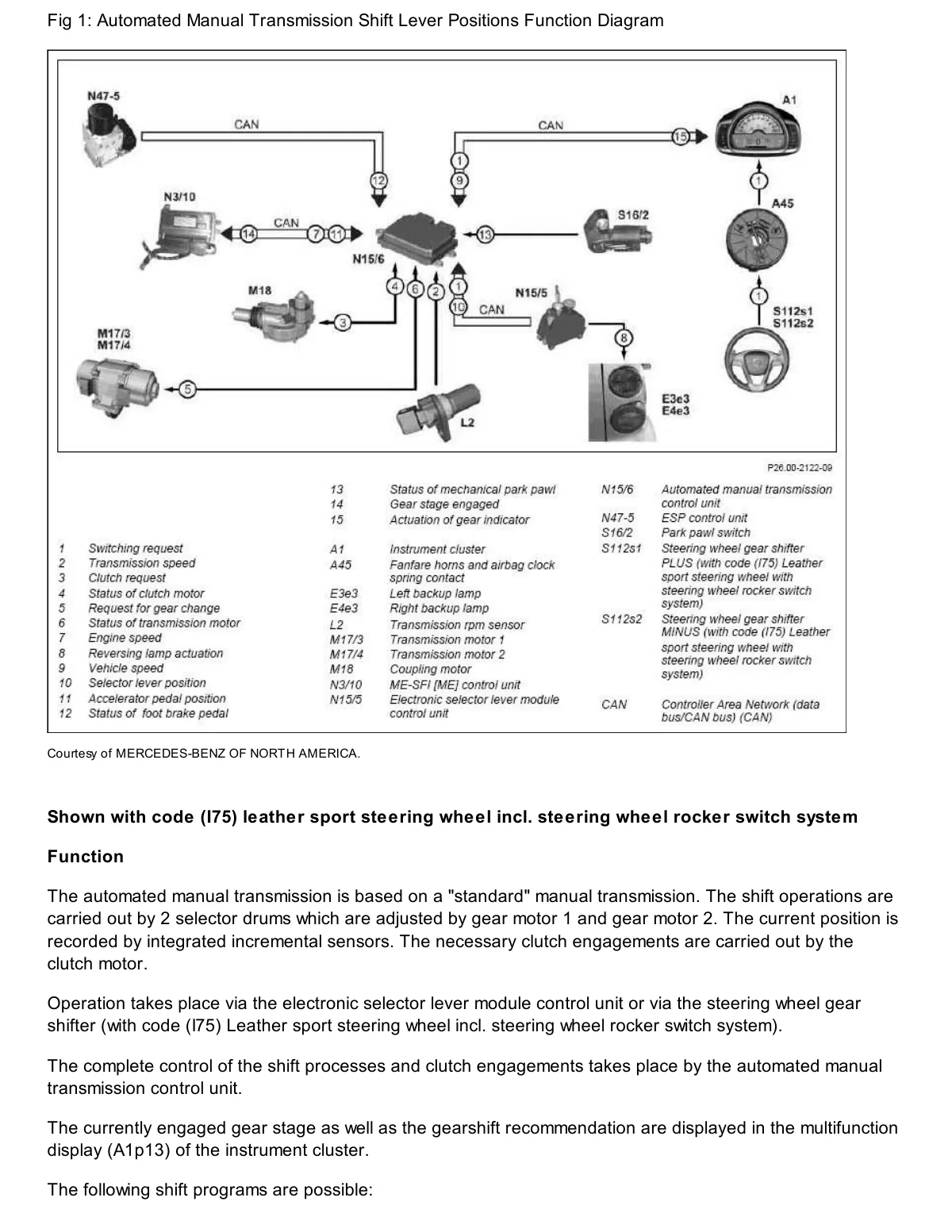

Automated manual transmission shift lever positions function diagram showing control modules, sensors, and CAN bus communication network.

Schematic diagram of AMT shift lever system with numbered callouts showing electrical components and data bus connections.
