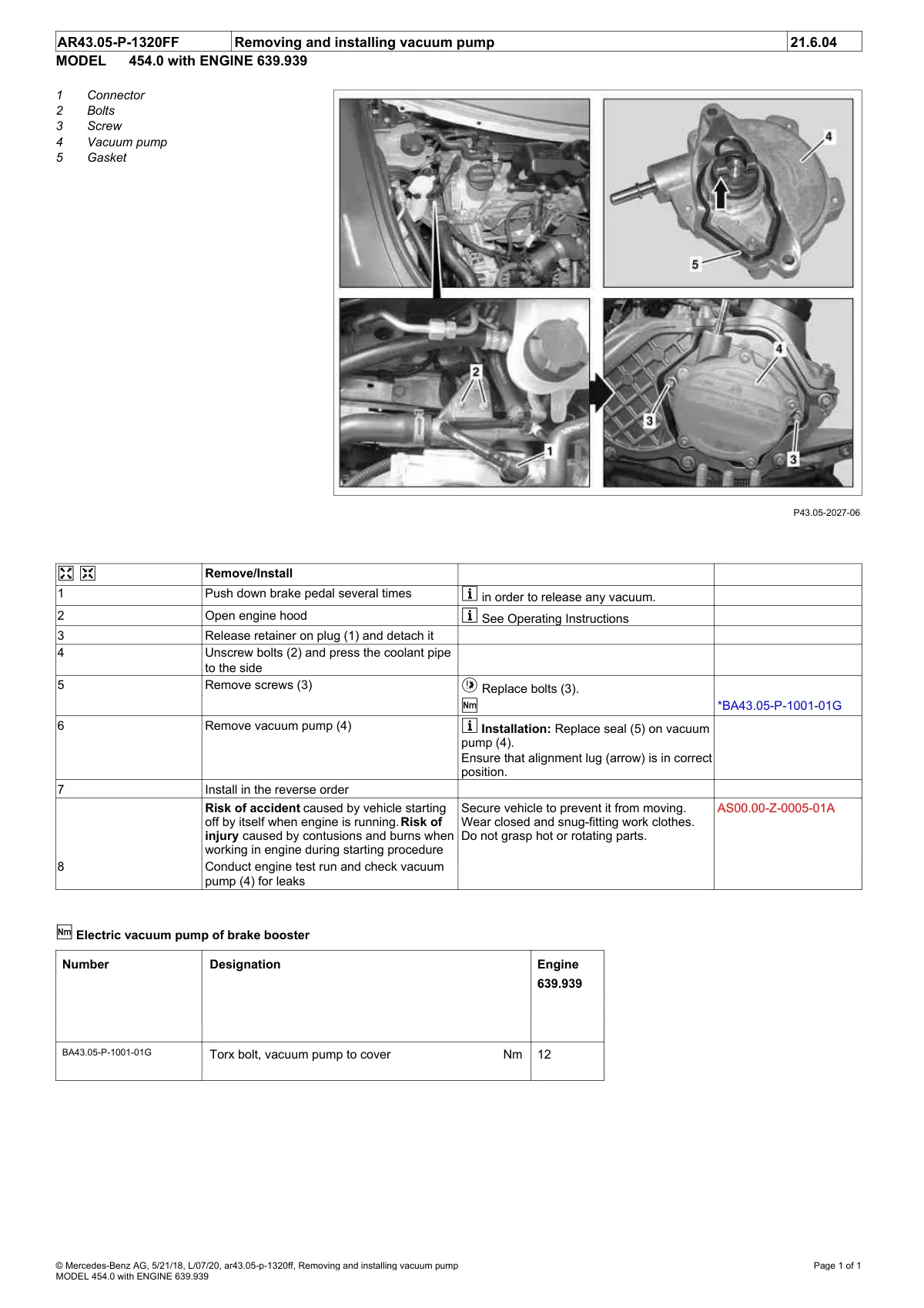

454 chassis vacuum pump removal and installation procedure with engine 639.939 callout locations.

Four engine bay photographs showing vacuum pump location, connector, bolts, and gasket for Smart 454.
